Projecteur LED SIBERIA XP 9" – 15030 lm, 711 m, Double Mode

Projecteur LED SIBERIA XP 9" – 15030 lm, 711 m, Double Mode

White / Yellow Pos. | Hello Func. | DT-4Pin

UGS: 270992

En stock

Prix habituel €259,90
Prix habituel Prix soldé €259,90
Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Afficher tous les détails
Description

Le projecteur LED SIBERIA XP 9" offre une puissance exceptionnelle allant jusqu’à 15 030 lumens et une portée de 711 mètres en mode Xperience. Son faisceau longue portée garantit une visibilité maximale sur les routes les plus sombres. Grâce à son double mode (E-mode et Xperience), il s’adapte à toutes les conditions de conduite. Personnalisez votre éclairage avec des lentilles interchangeables (jaune ou dark) et profitez des feux de position jaune et blanc ainsi que de la fonction Hello. Robuste et étanche (IP68/IP69K), il est conçu pour durer dans les environnements les plus exigeants.

Points forts :

  • Puissance : 3080 / 15 030 lumens
  • Portée : jusqu’à 711 mètres
  • Double mode : E-approved & Xperience
  • Lentilles interchangeables : jaune ou dark
  • Feux de position : jaune et blanc
  • Fonction Hello (double flash)
  • Résistance extrême : IP68/IP69K
  • Installation facile avec connecteur DT-4
  • Certifications : ECE R149, R148, ECE R10
Product Specification

  • UnitPCS
  • Voltage (DC)10-40V DC
  • Theoretical effect150W
  • Consumption145W
  • FunctionsWhite pos.Yellow pos.Xperience modeE-approved modeHello function
  • Consumption specific functionWhite pos. 5.5WYellow pos. 5.5WX-mode 144WE-mode 31W
  • Theoretical lumen20000lm
  • Actual lumen15030lm

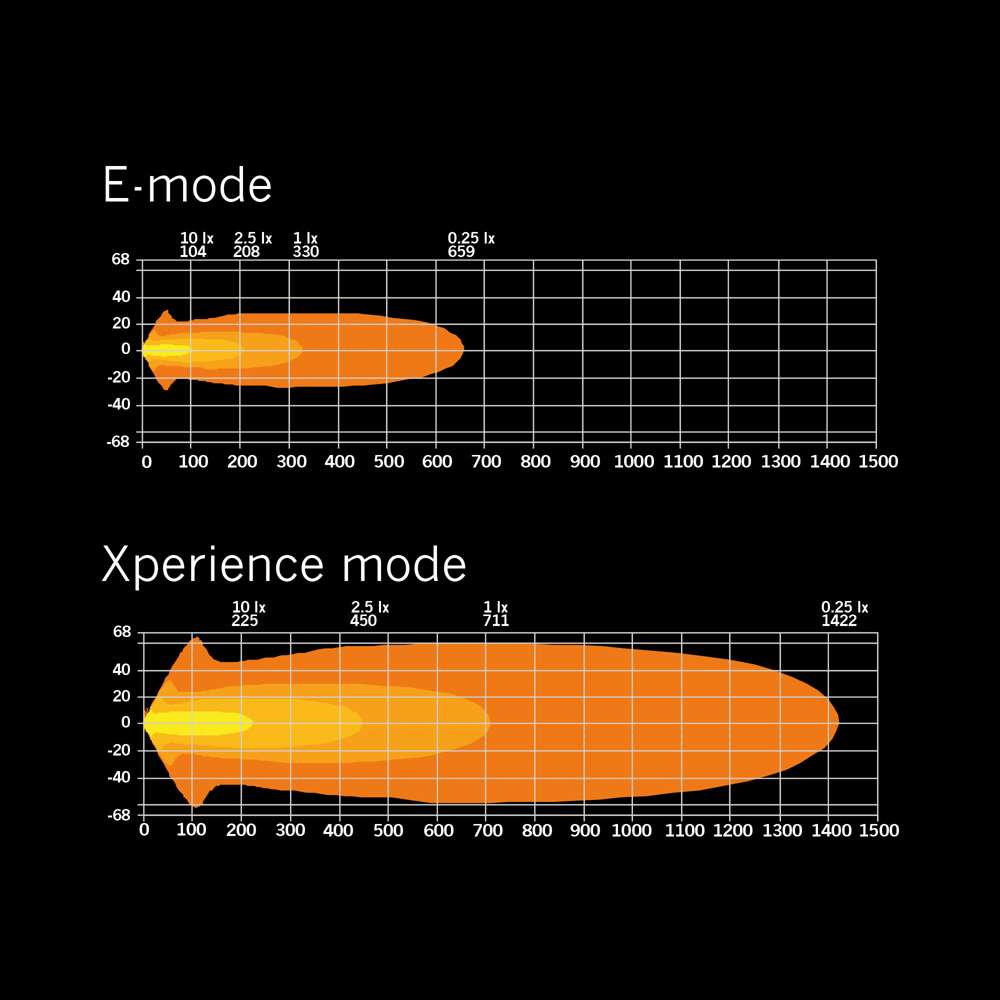

  • 1 lux @711m
  • Color temperature5700K
  • Beam patternLong-distance beam
  • Beam angle14.6°
  • ConnectionDT-4PIN
  • Cable length150mm
  • Color housingBlack
  • Color lensClear
  • Color LED'sWhite | Yellow
  • Material bracketStainless Steel
  • Material housing/chassiAluminium
  • Material lensPolycarbonate

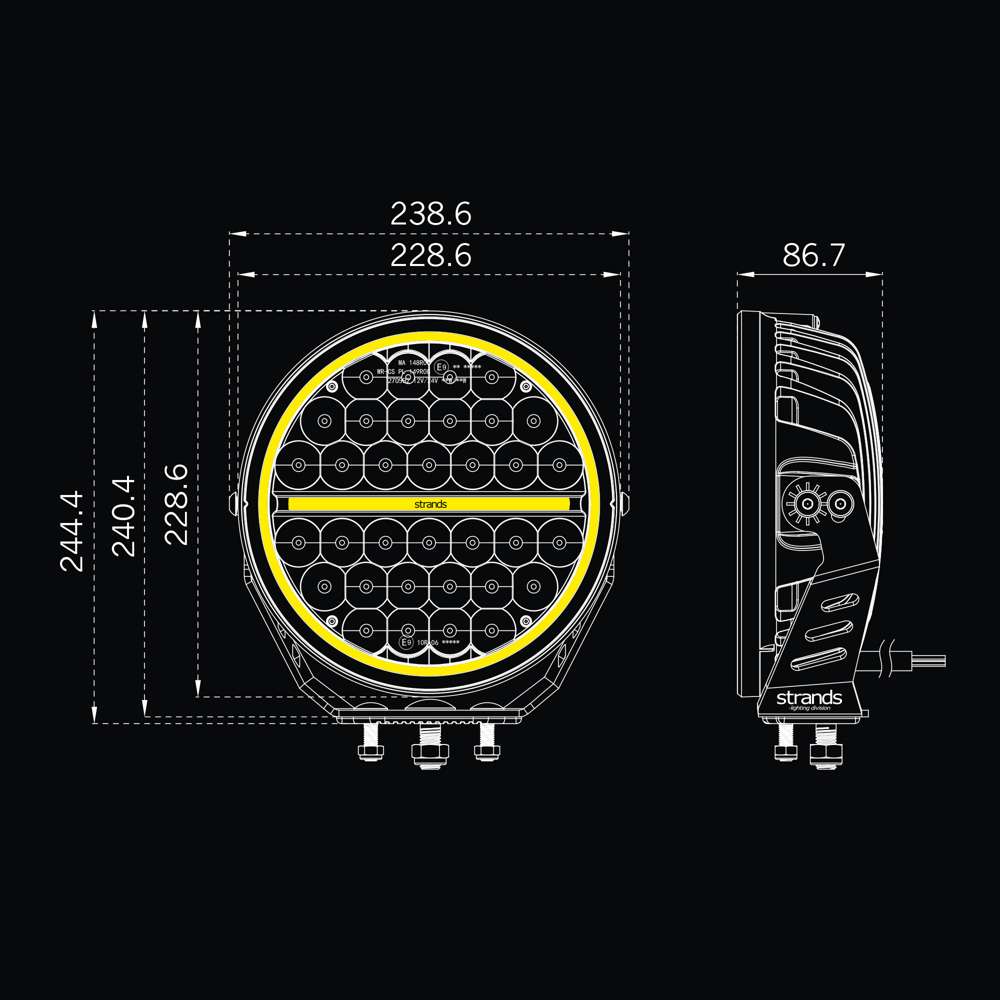

  • Length228.6mm
  • Depth86.7mm
  • Height228.6mm
  • Height including bracket244.4mm
  • Weight3.6kg
  • Diameter228.6mm
  • IP-classIP68/69K
  • Operating temperature-30 - +65°C
  • E-approvedYes
  • ECE approvalR10.06R148R149
  • Reference number20

Others Specification

  • Length inner box331mm
  • Width inner box160mm
  • Height inner box287mm
  • Gross weight4kg
  • Volume0.015m³
  • Warranty3 Years
  • Length master carton682mm
  • Width master carton185mm
  • Height master carton595mm
  • Weight master carton17kg
  • PCS in master carton4pcs

Installation Information

  • Red cable+ (High-beam)
  • Black cable- (Negative)
  • White cable+ White Position light(Positive)
  • Yellow cable+ Yellow position light(Positive)
  • Included in packageScrewsRubber padwashersBracket
