Nuuk D-Line LED Bar 20" Complete Kit – Tesla Model Y

Nuuk D-Line LED Bar 20" Complete Kit – Tesla Model Y

SKU: MAK44344514A

Out of stock

Regular price €240,60
Regular price Sale price €240,60
Sold out
Tax included. Shipping calculated at checkout.
View full details
Description

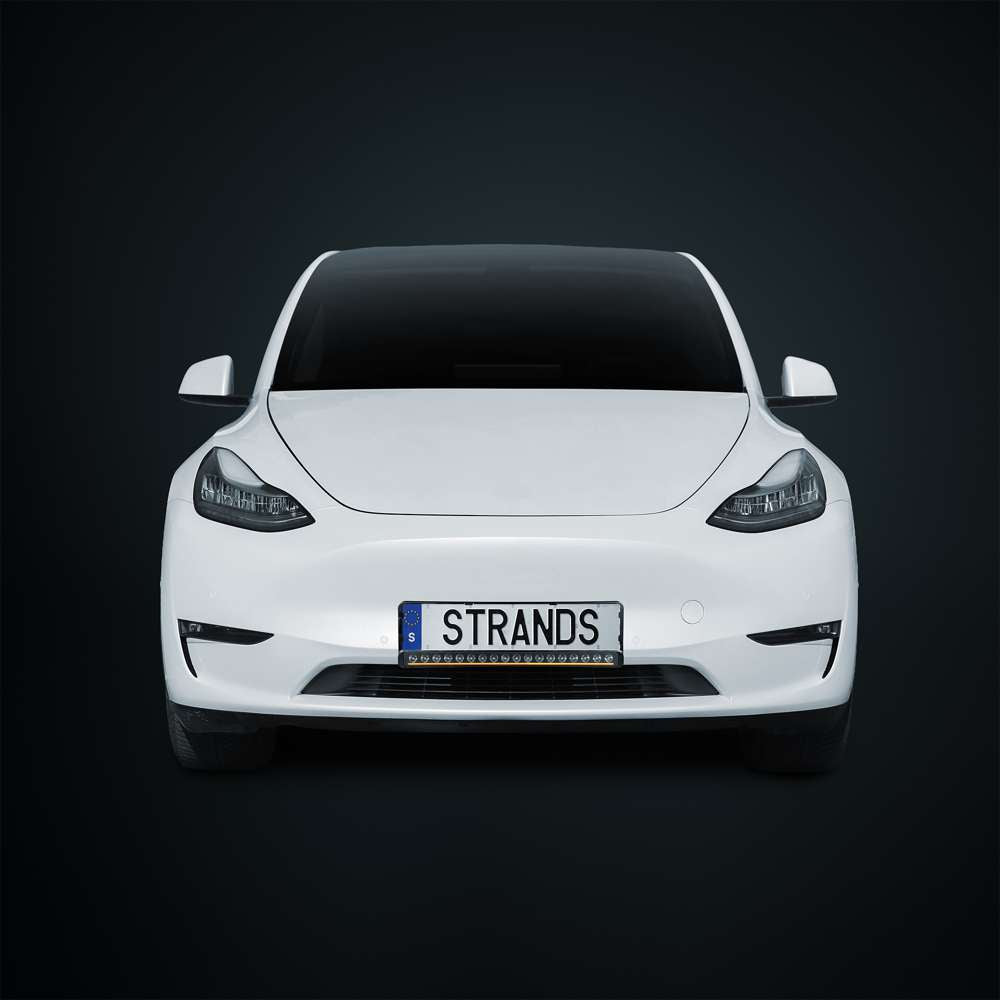

Designed exclusively for the Tesla Model Y (2020–2024), the Strands Nuuk D-Line LED Bar 20" Complete Kit brings a contemporary, minimalist edge to one of the world's most recognizable EVs. Inspired by modern automotive design language, the bar features a slim single-row profile with a dark lens finish that blends discreetly into the vehicle's front end, standing just 4.5 cm tall including the bracket — narrow enough to fit even the tightest mounting spaces without disrupting the car's clean lines.

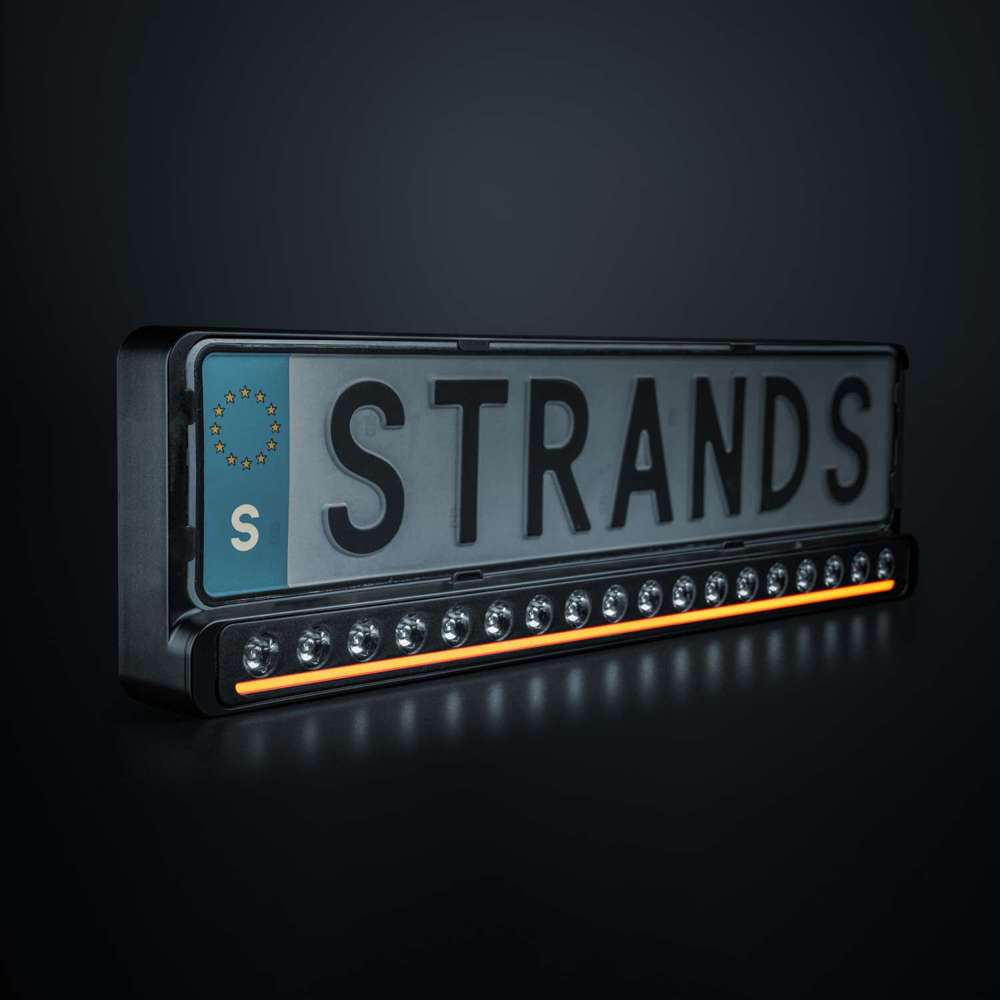

A standout detail is the duo-color position light in white and amber, which adds a subtle but eye-catching accent while reinforcing the bar's blacked-out aesthetic. Beyond styling, functionality is built in: the kit includes a dual-mode lighting system offering both an E-approved mode (certified under R148/R149 for European roads and safe use in rain or snow) and an Xperience mode that delivers a substantial output boost for the darkest driving conditions.

Installation is straightforward thanks to a built-in relay, cable harness, and a complete hardware set — side and hanging brackets, screws, bolts, washers, dura seals, and silicone pads — all included in the box, along with a 2.5m cable rated for 9–36V systems. Backed by Strands' 3-year warranty and manufactured under ISO 9001 and ISO 14001 certification, this kit (SKU: MAK44344514A) is available through Strands' European Golden Shop retailer network, giving Model Y owners a stylish, safety-focused lighting upgrade built specifically for their car.

Product Specification

  • UnitPACK
  • Voltage (DC)10-36V DC
  • Theoretical effect129W
  • Consumption125W
  • FunctionsAmber Pos.White pos.Xperience modeE-approved mode
  • Consumption specific functionWhite pos. 9WX-mode 124WAmber pos. 8WE-mode 32W
  • Theoretical lumen12600lm
  • Actual lumen9600lm
  • 1 lux @492m
  • Color temperature5000K
  • Beam patternOptimized beam
  • ConnectionCable
  • Cable length2500mm
  • Color housingBlack
  • Color lensBlack
  • Material bracketPlastic
  • Material housing/chassiAluminium
  • Material lensPolycarbonate
  • Length544mm
  • Depth51mm
  • Height162mm
  • Weight1.9kg
  • IP-classIP68/69K
  • Operating temperature-40 - +60°C
  • E-approvedYes
  • ECE approvalR10.06R148R149
  • Reference number20

Others Specification

  • Gross weight3.8kg
  • Volume0.005m³
  • Warranty3 Years
  • PCS in master carton1pcs

Installation Information

  • Red cable+ (Positive) with fuse box
  • Black cable- (Negative)
  • White cable+ White pos. light
  • Yellow cable+ Amber Pos. Light
  • Green cable+ (on/off signal line for high beam)
  • Included in packageLED barLicence plate Holder and Accessories (No canbus included)
