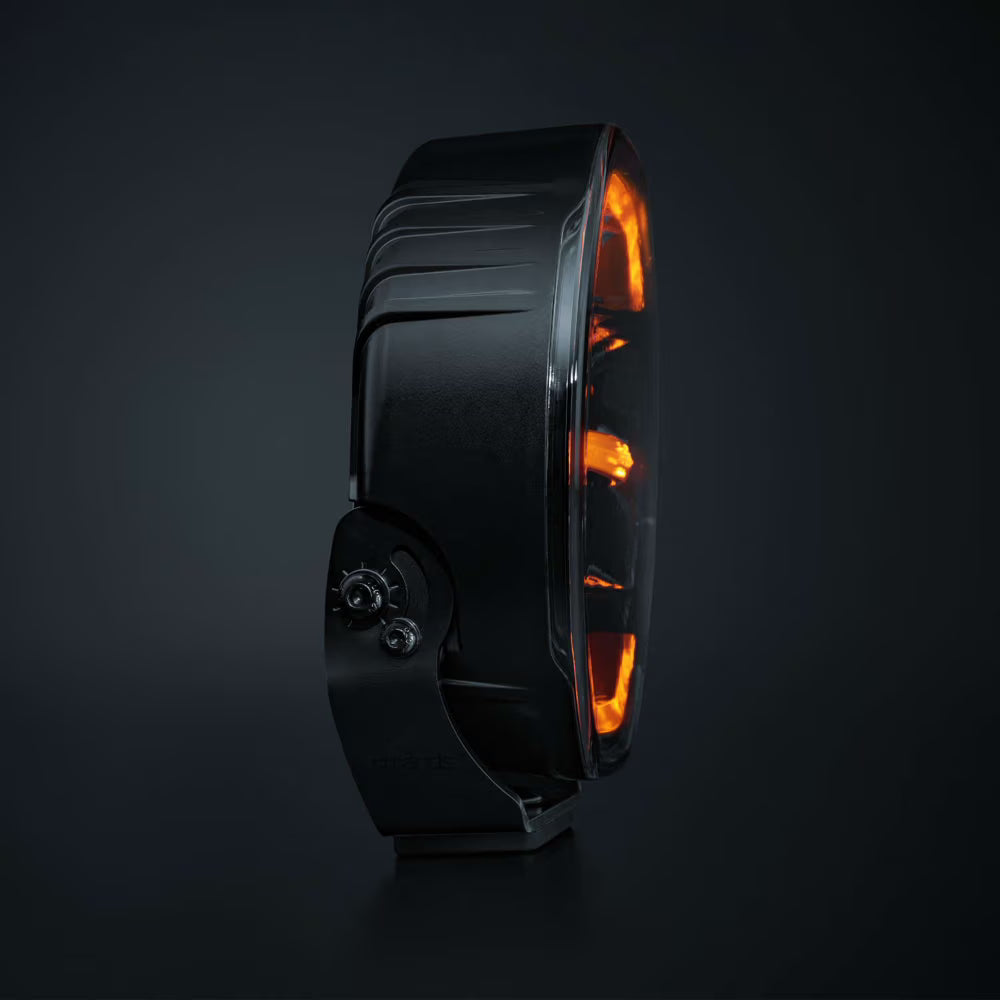

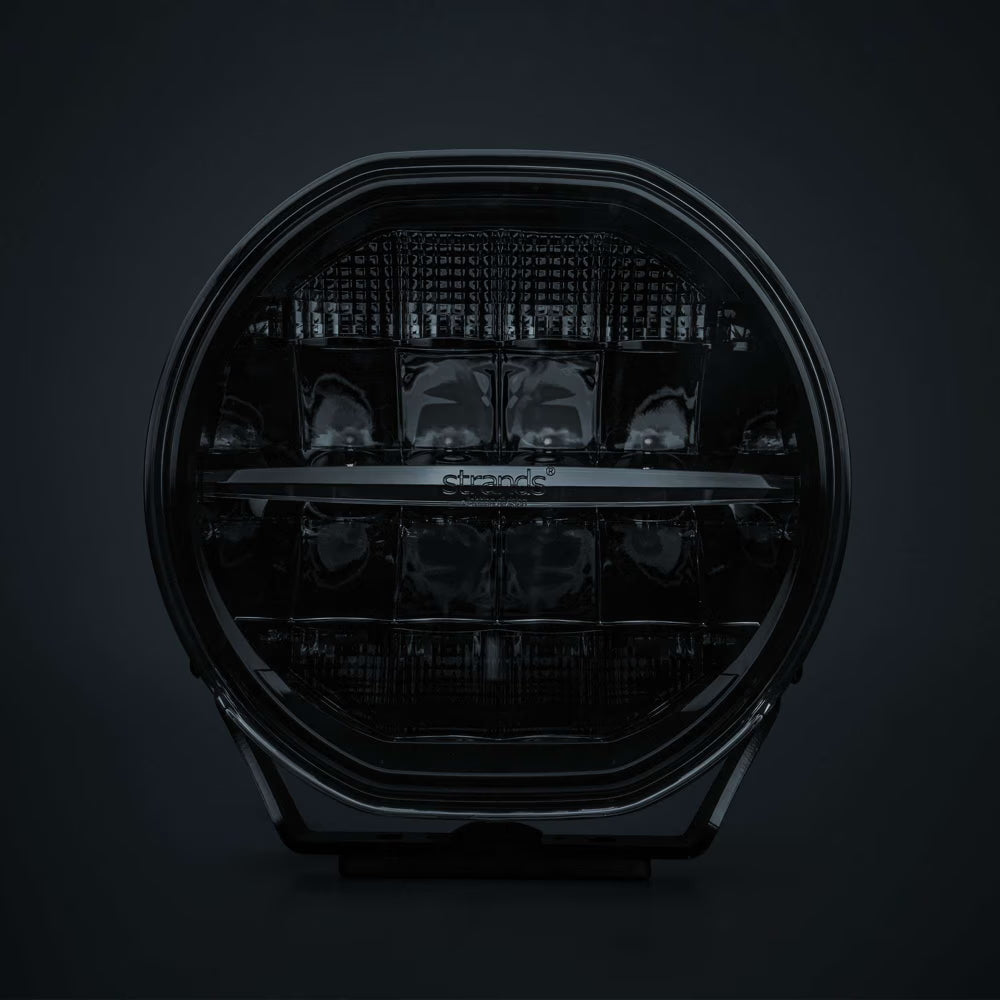

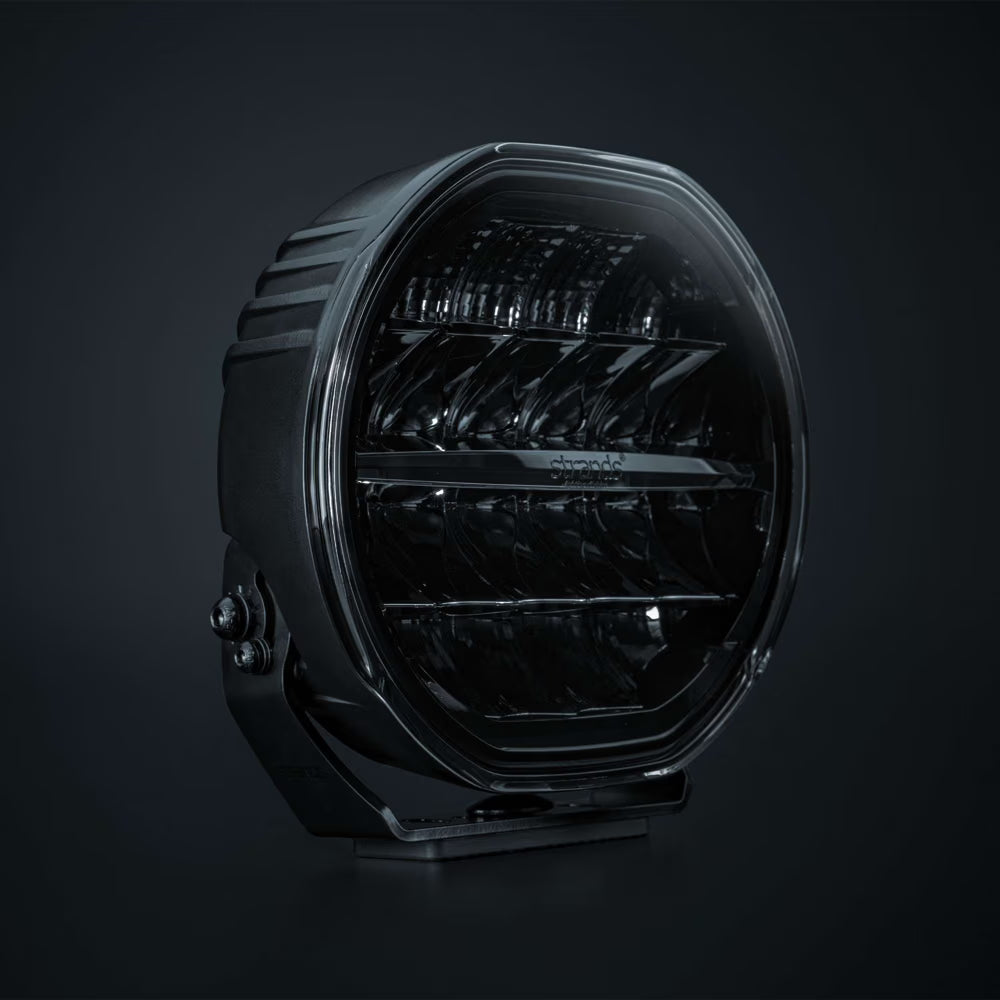

NUUK D-LINE DRIVING LIGHT 9"

NUUK D-LINE DRIVING LIGHT 9"

White / Amber Pos. | 2.5m Cable | Xperience Mode

UGS: 901021

En stock

Prix habituel €259,00
Prix habituel Prix soldé €259,00
Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Afficher tous les détails
Description

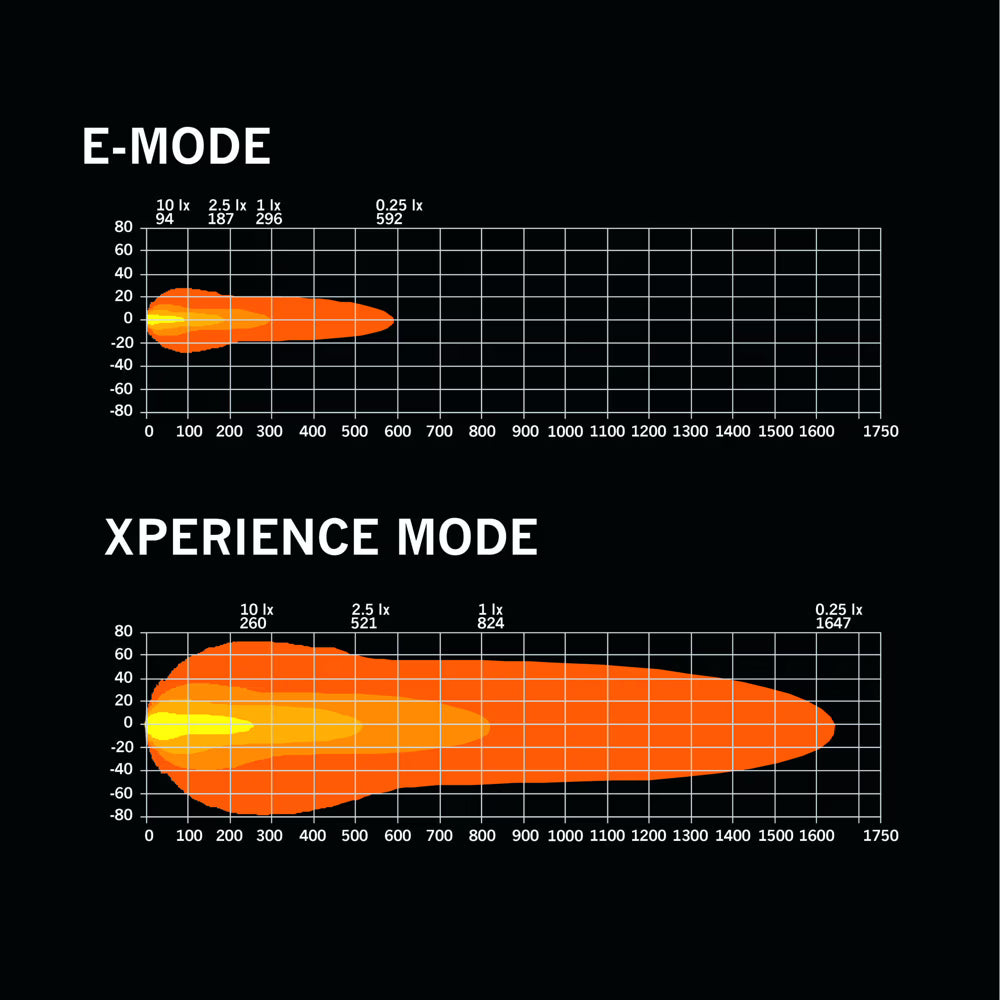

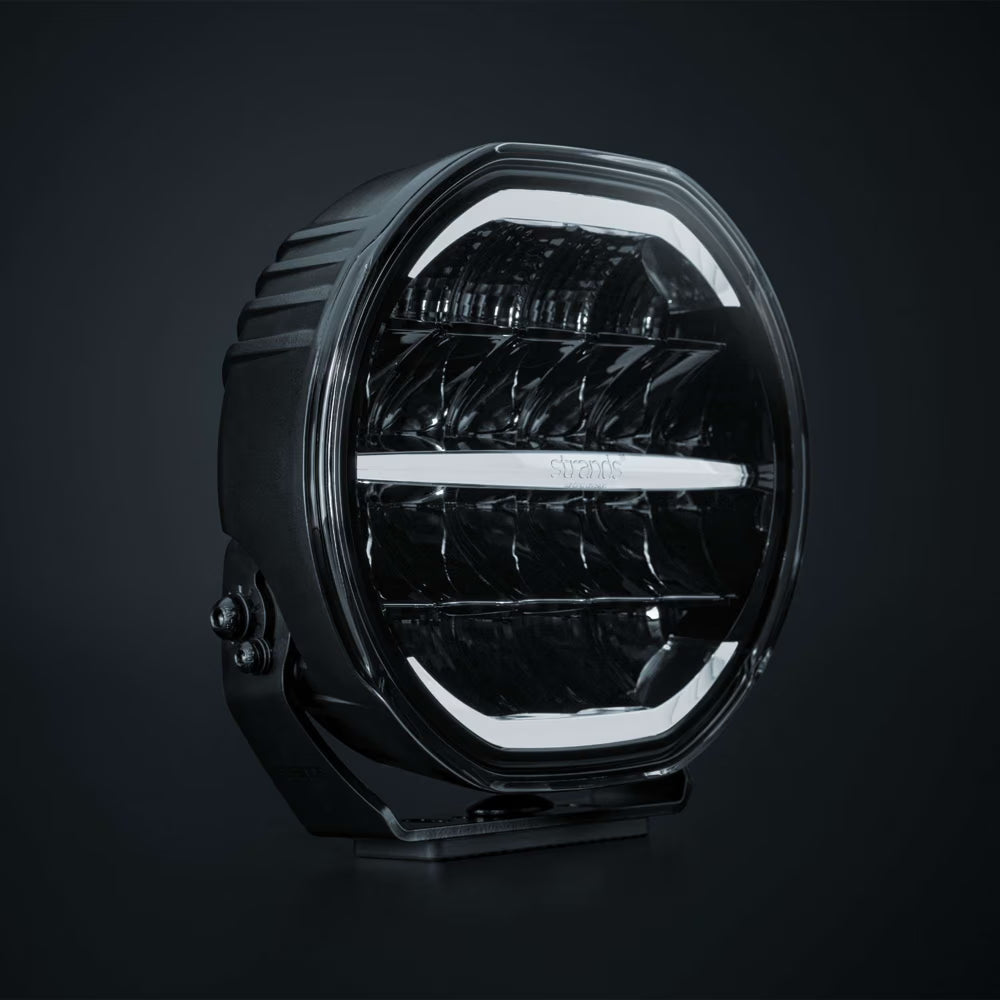

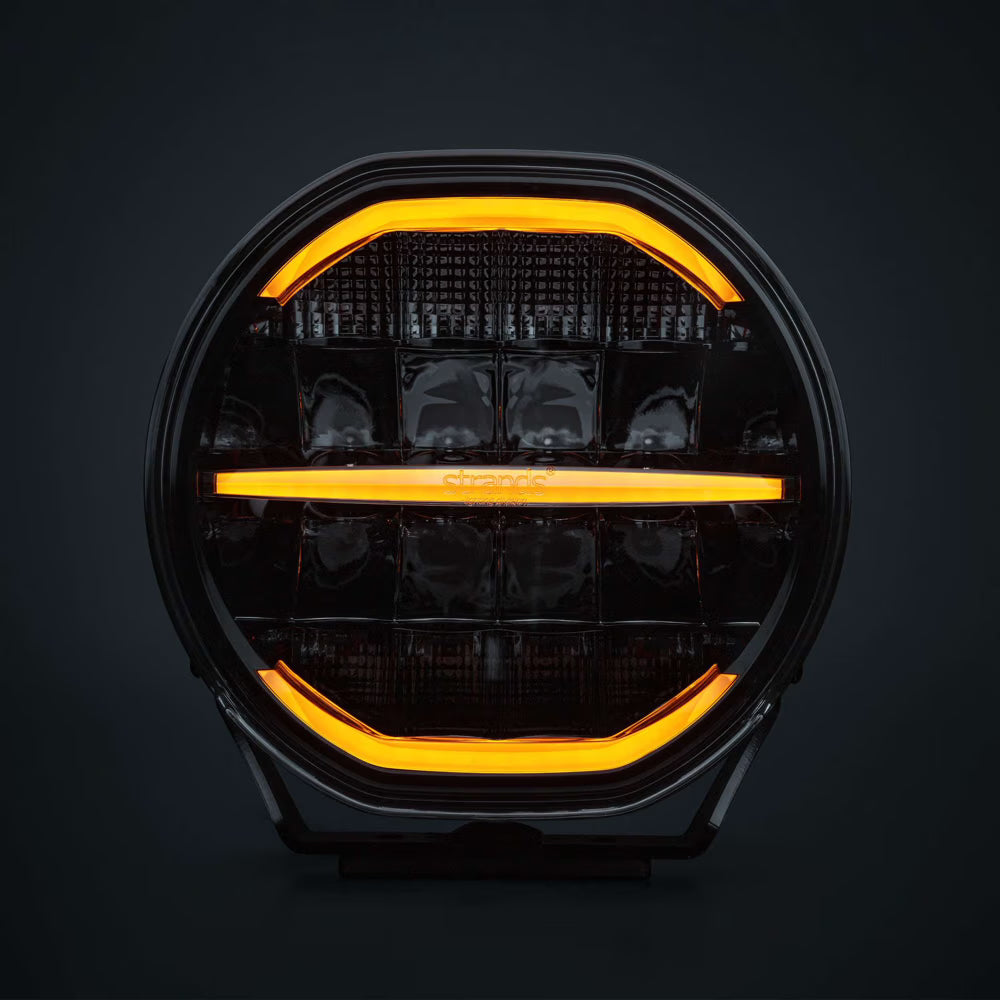

The Nuuk D-Line range has a new addition. This 9” driving light has a range of +800 meters in Xperience mode thanks to its 13400 actual lumens. The beam pattern features a new design that combines the best of both width and range, far and near the vehicle. Now, you don’t have to choose between long-range or close-range visibility: the Nuuk D-Line has you covered. The E-mode is E-approved (R148/R149) with reference number 20. The D-Line driving light features a new position light design. It is built into the reflector, fully utilizing the mirror-like surface to create a vibrant glow with white and amber light. It is IP-rated IP69K, constructed with sturdy materials, and protected by a new coating. You can be sure this driving light will be a long-lived addition to your vehicle, and Strands’ 3-year warranty covers it.



Product Specification

  • Unit: PCS
  • Voltage (DC): 10-32V DC
  • Theoretical effect: 185W

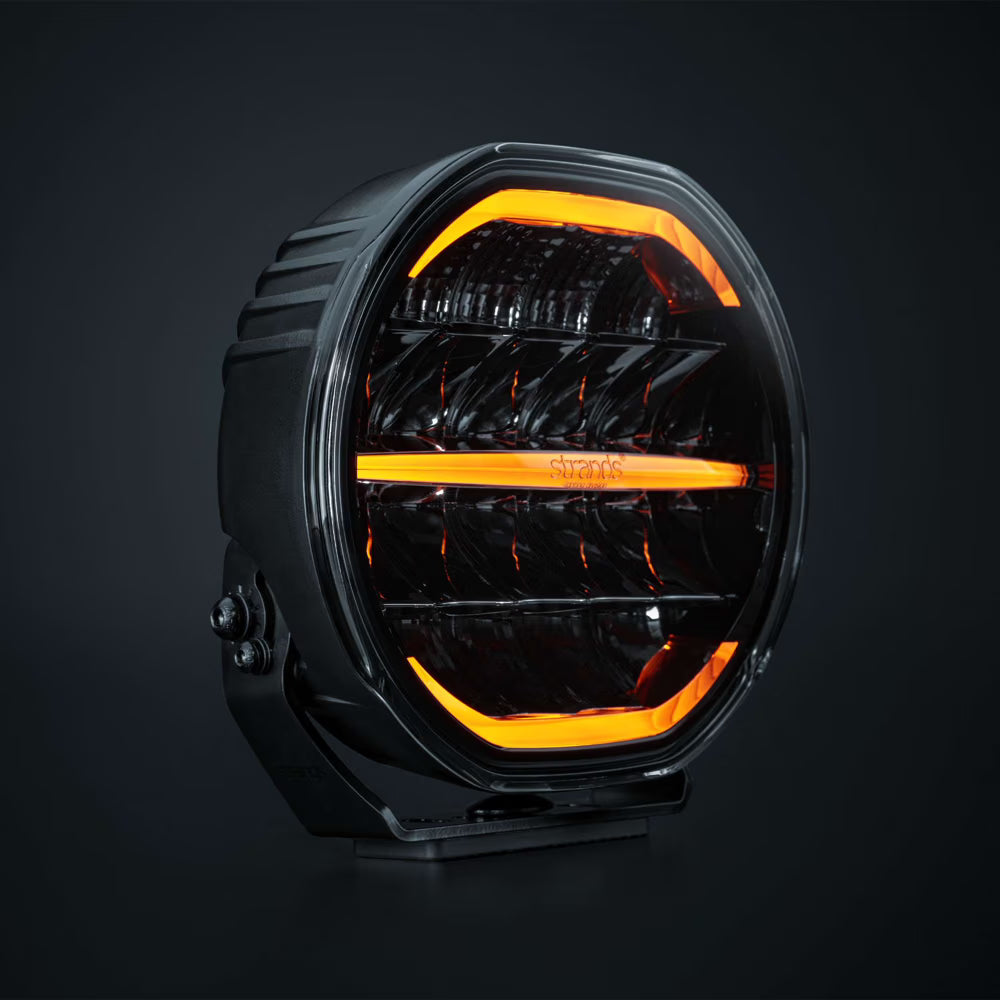

  • Consumption: 171W
  • Functions: Amber Pos.White pos.Driving beam
  • Consumption specific function: White pos. 1WAmber pos. 1WE-mode 22WX-mode 171W
  • Theoretical lumen:18000lm
  • Actual lumentv 13400lm
  • 1 lux @: 824m
  • Color temperature: 5700K
  • Beam pattern: Long-distance beam
  • Beam angle: 13.6°

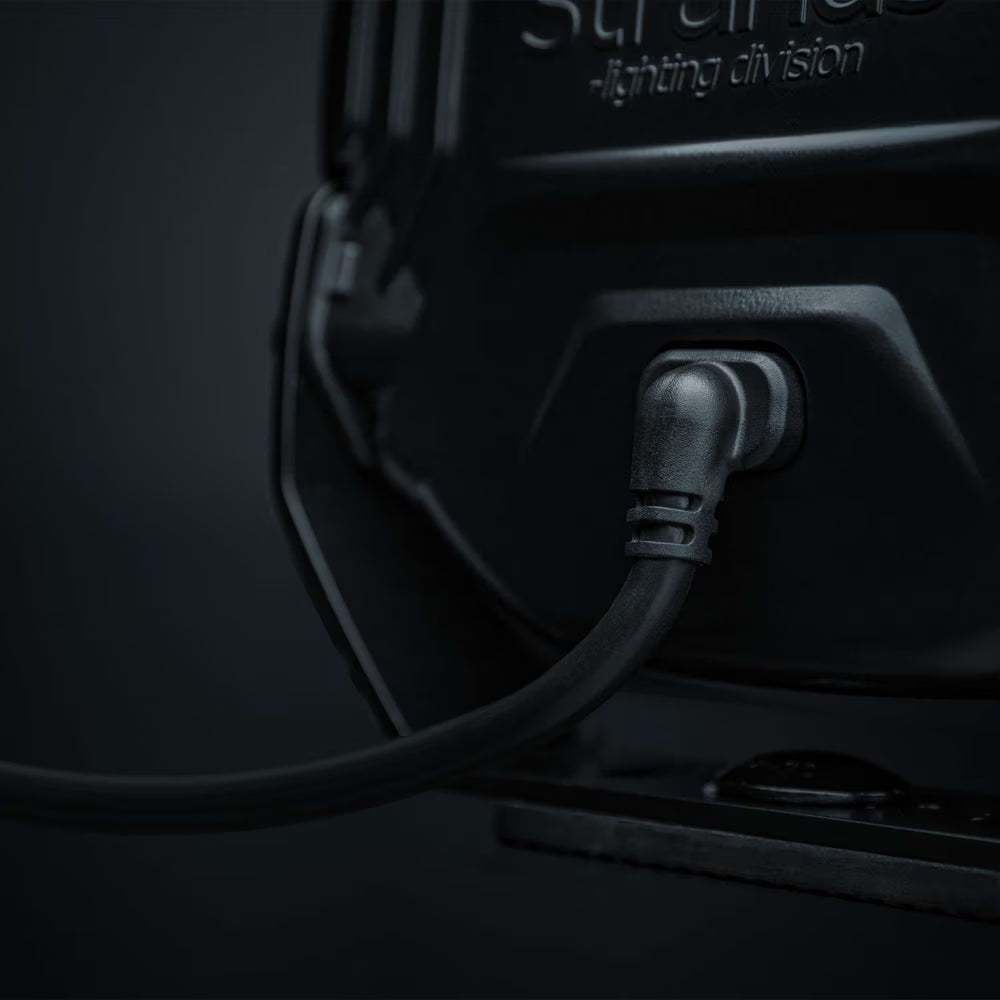

  • Connection: Cable
  • Cable length:2500mm
  • Color housing: Black
  • Color lens: Clear
  • Color LED's: White | Amber

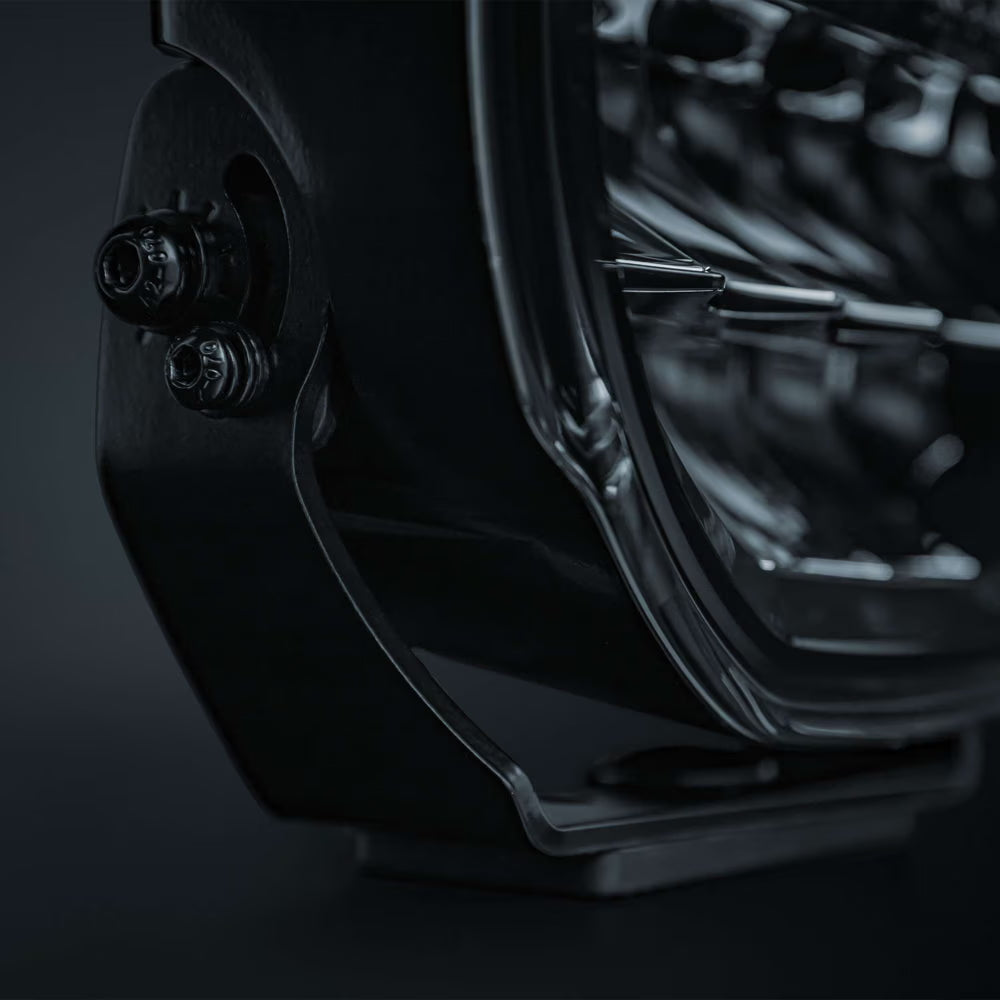

  • Material bracket: Stainless Steel
  • Material housing/chassi: Aluminium
  • Material lens: Polycarbonate
  • Length: 220mm
  • Depth: 82mm
  • Height: 208mm
  • Height including bracket: 233mm
  • Weight: 2.61kg
  • Diameter: 220mm
  • IP-classI: P69K
  • Operating temperature: -40 - +60°C
  • E-approved: Yes
  • ECE approval: R10.06R148R149
  • Reference number: 20

Others Specification

  • Length inner box: 331mm
  • Width inner box: 287mm
  • Height inner box: 160mm
  • Gross weight: 3.09kg
  • Volume: 0.015m³
  • Warranty: 3 Years
  • Length master carton: 682mm
  • Width master carton: 595mm
  • Height master carton: 185mm
  • Weight master carton: 12kg
  • PCS in master carton: 4pcs

Installation Information

  • Red cable+: (Xperience mode)
  • Black cable: - (Negative)
  • White cable+: (white position light)
  • Yellow cable+: (Amber position light)
  • Green cable+: (E-mode)
  • Included in package: Screws, Rubber pad, washers, Bracket, bolts, nuts
