IZE LED ROOF LIGHT DUO FUNCTION

IZE LED ROOF LIGHT DUO FUNCTION

White/Amber Pos. | Warning light | Dark lens

UGS:

En rupture de stock

Prix habituel €29,95
Prix habituel Prix soldé €29,95
Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Afficher tous les détails
Description

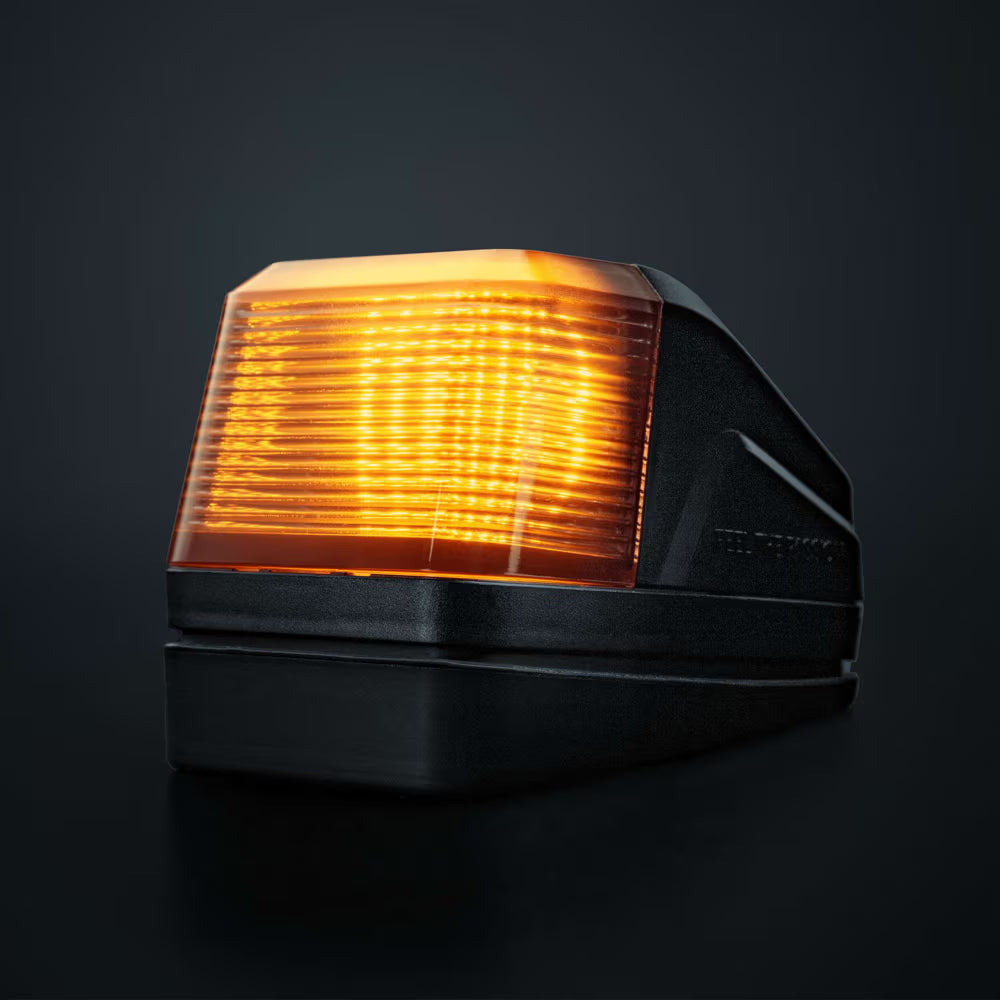

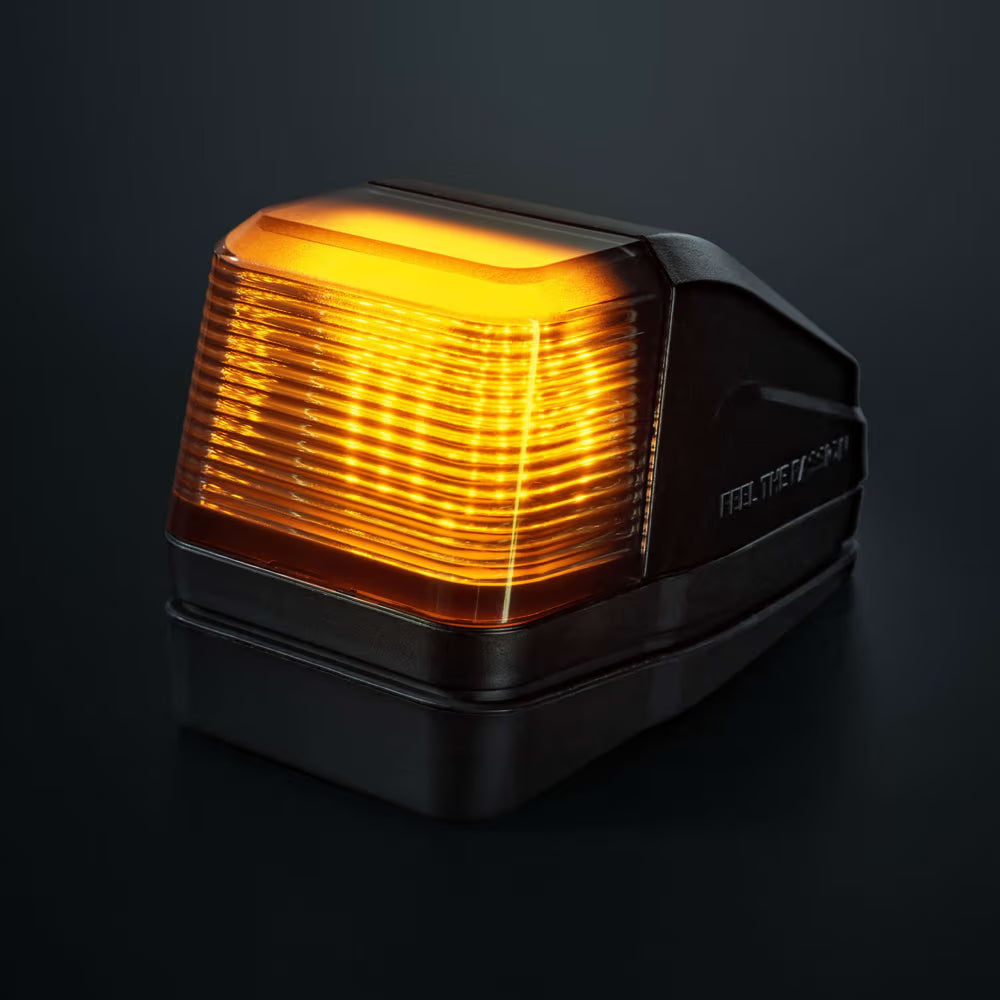

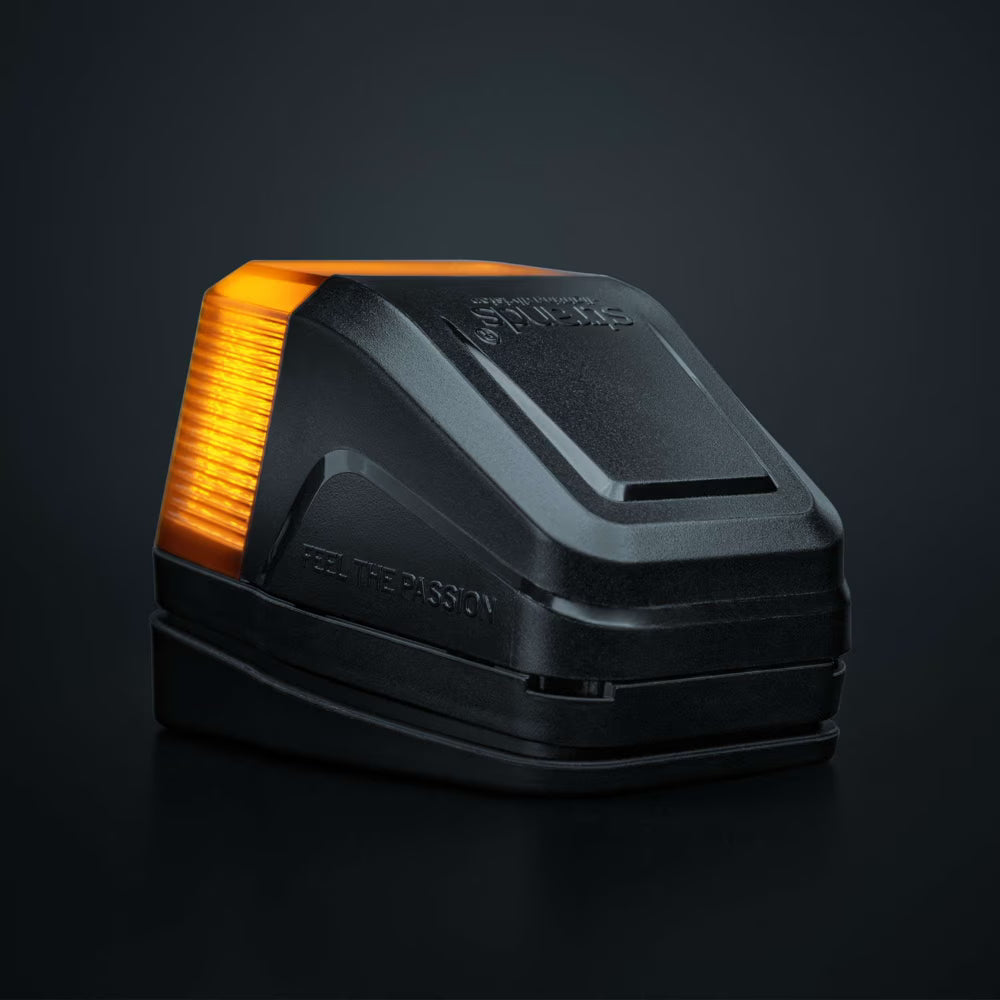

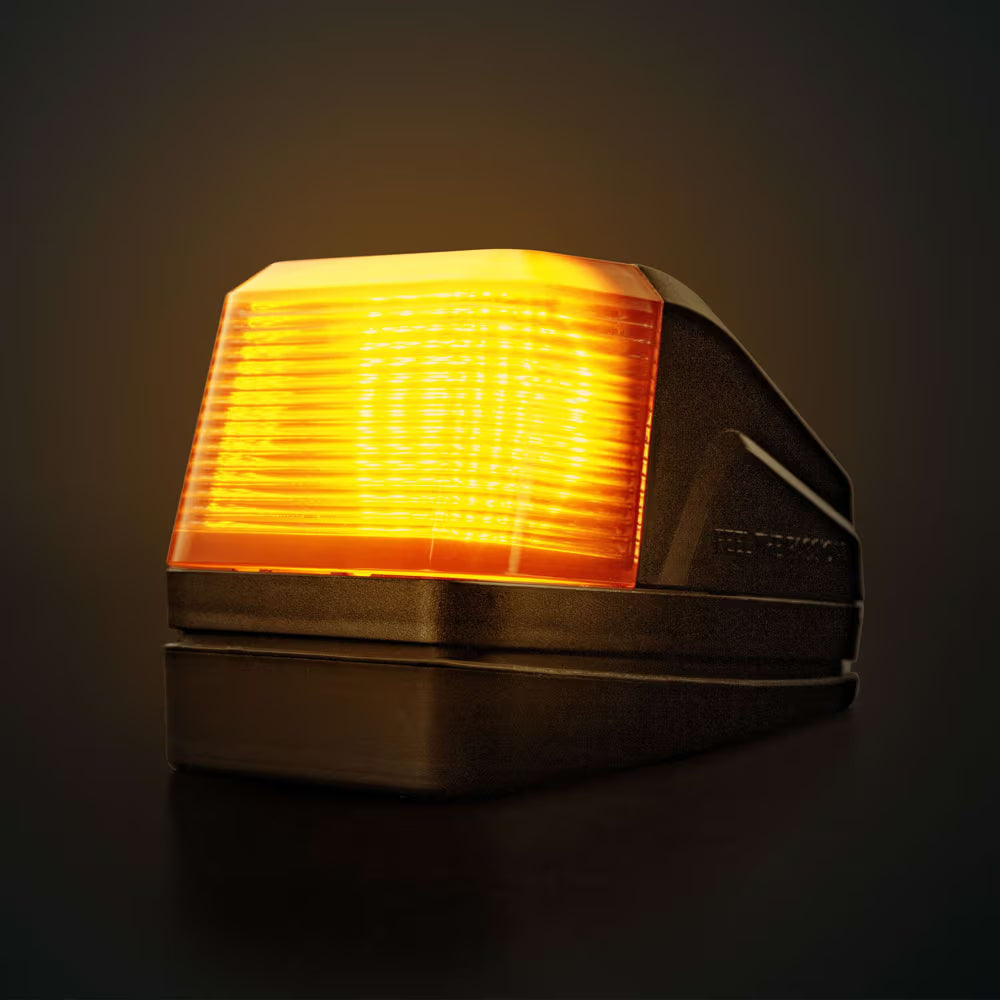

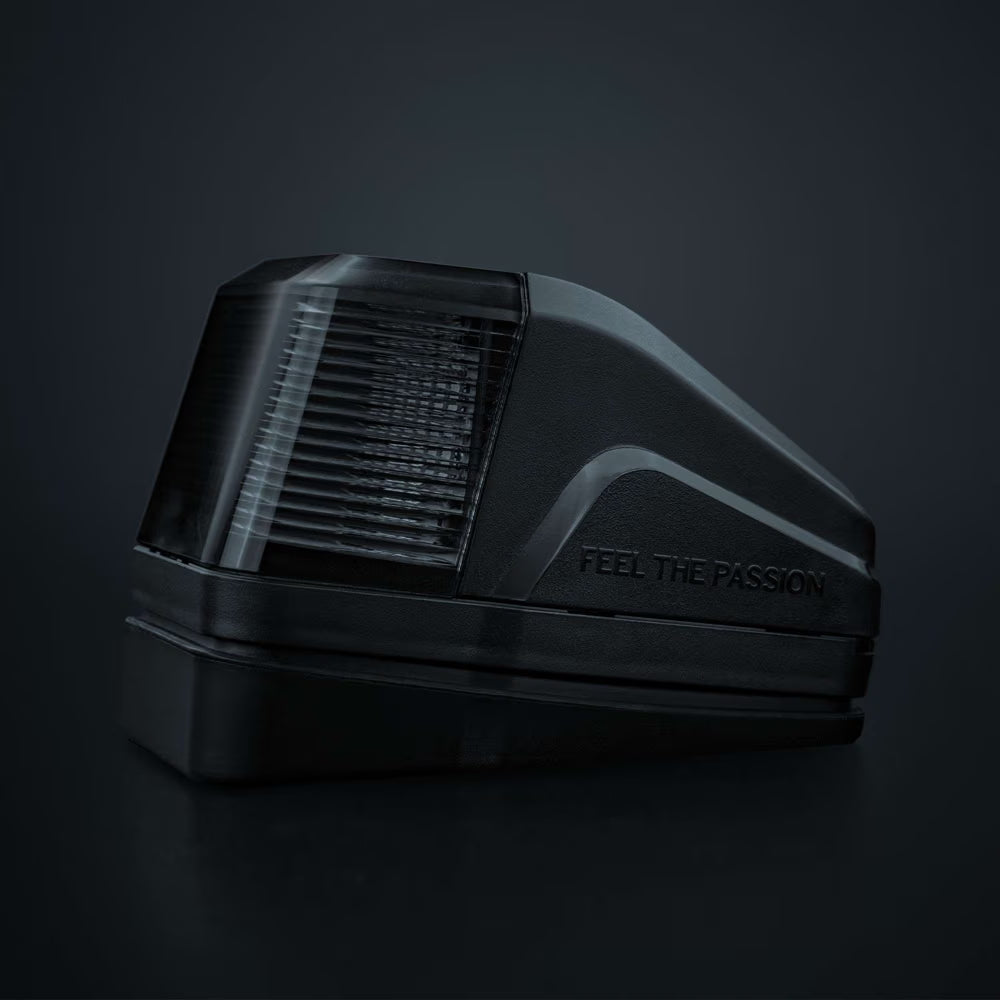

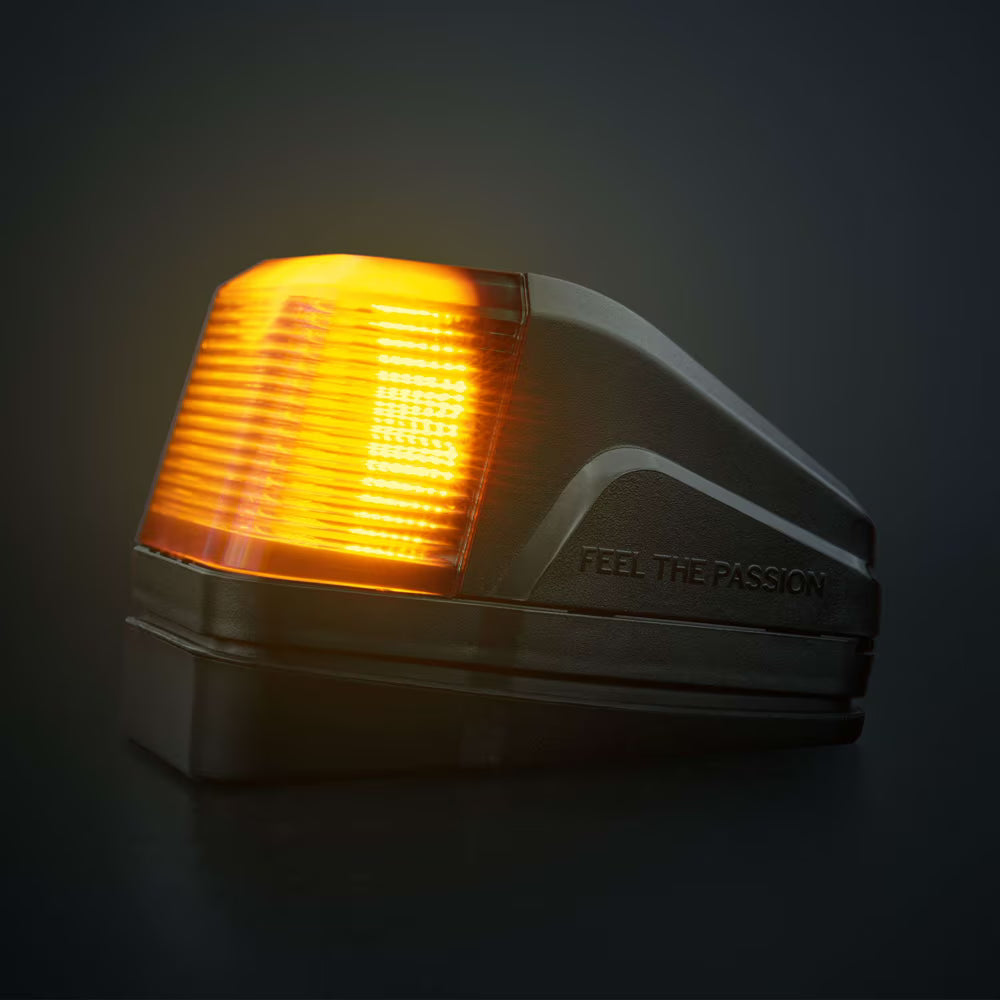

The IZE LED roof light is a classic “Volvo-style” lamp with a sleek and modern design. Its dark lens will look good on any truck. You can choose a white or amber position light, and it also features a built-in warning light function. So you can both look good and stay safe on the road. The IZE LED roof light is made from the most durable materials, IP-rated IP69K, and comes with Strands’ 3-year warranty. A guarantee for a light that will never disappoint, in any weather. It measures 66 mm high (incl. bracket) with 61 mm CC. All installation accessories are included: a plastic click-in base, screws, washers, bolts, and a silicone pad. Or use the angle rubber bracket (Part No. 903022, available separately).



Product Specification

  • Unit: PCS
  • Voltage (DC): 10-32V DC
  • Theoretical effect: 10W
  • Consumption: 4W
  • Functions: Warning lightAmber Pos.Front marker
  • Consumption specific function: Amber pos. 1WWarning 4WWhite pos. 2.2W
  • Patterns: 19
  • Connection: Cable
  • Cable length: 1000mm
  • Color housing: Black
  • Color lens: Dark
  • Color LED's: White | Amber
  • Material housing/chassi: Polycarbonate
  • Material lens: Polycarbonate
  • Length: 60mm
  • Depth: 91.4mm
  • Height48mm
  • Height including bracket: 65.6mm
  • Weight: 0.209kg
  • CC: 61mm
  • IP-class: IP69K
  • Operating temperature: -30 - +60°C
  • E-approved: Yes
  • ECE approval: R10.06R148
  • Additional information: White light has 5700K and 70lm.

Others Specification

  • Length inner box: 130mm
  • Width inner box: 65mm
  • Height inner box: 150mm
  • Gross weight: 0.259kg
  • Volume: 0.001m³
  • Warranty: 3 Years
  • Length master carton: 670mm
  • Width master carton: 225mm
  • Height master carton: 315mm
  • Weight master carton: 8.8kg
  • PCS in master carton: 30pcs

Installation Information

  • Red cable+: (Positivecontrol warning light - default pattern is single flash)
  • Black cable: - (Negative)
  • White cable+: (Positivecontrol position light white)
  • Yellow cable: YELLOW = PATTERN SELECTION AND SYNCHRONIZATION (Maximum 12 pcs) FOR WARNING LIGHT
  • Grey cable+: (Positivecontrol position light amber)
  • Included in package: ScrewswashersboltsSilicon padPlastic click-in base
