FOR9T SPANISH LIGHT A&A

FOR9T SPANISH LIGHT A&A

Amber/amber | Dark lens

UGS: 903006

En stock

Prix habituel €69,00
Prix habituel Prix soldé €69,00
Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.
Color: White
Afficher tous les détails
Description

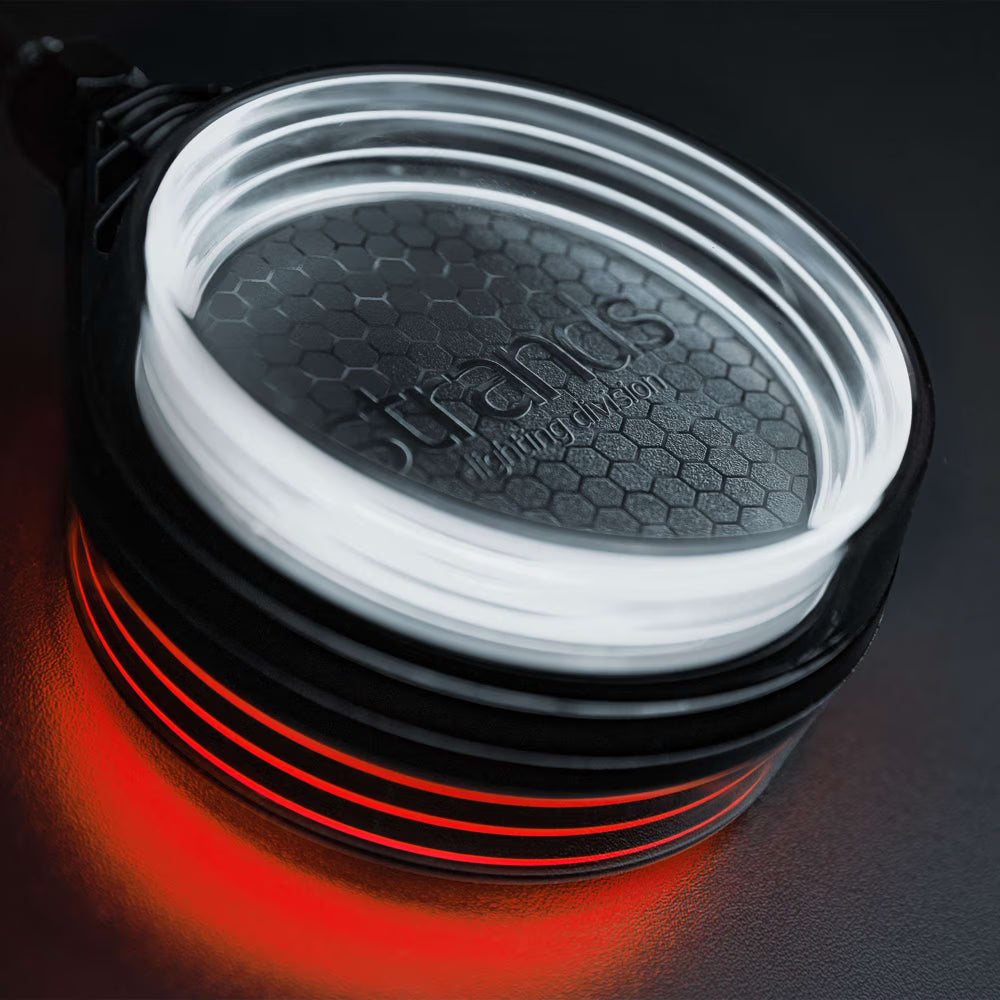

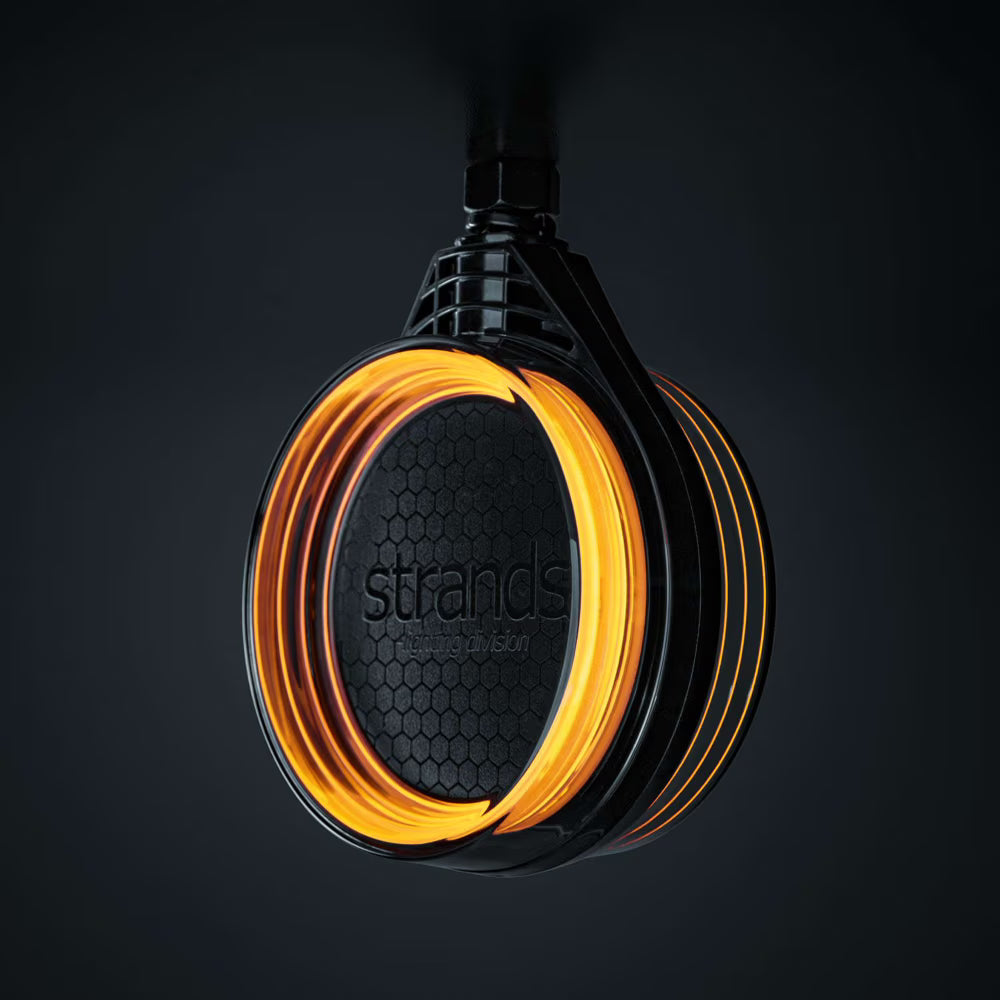

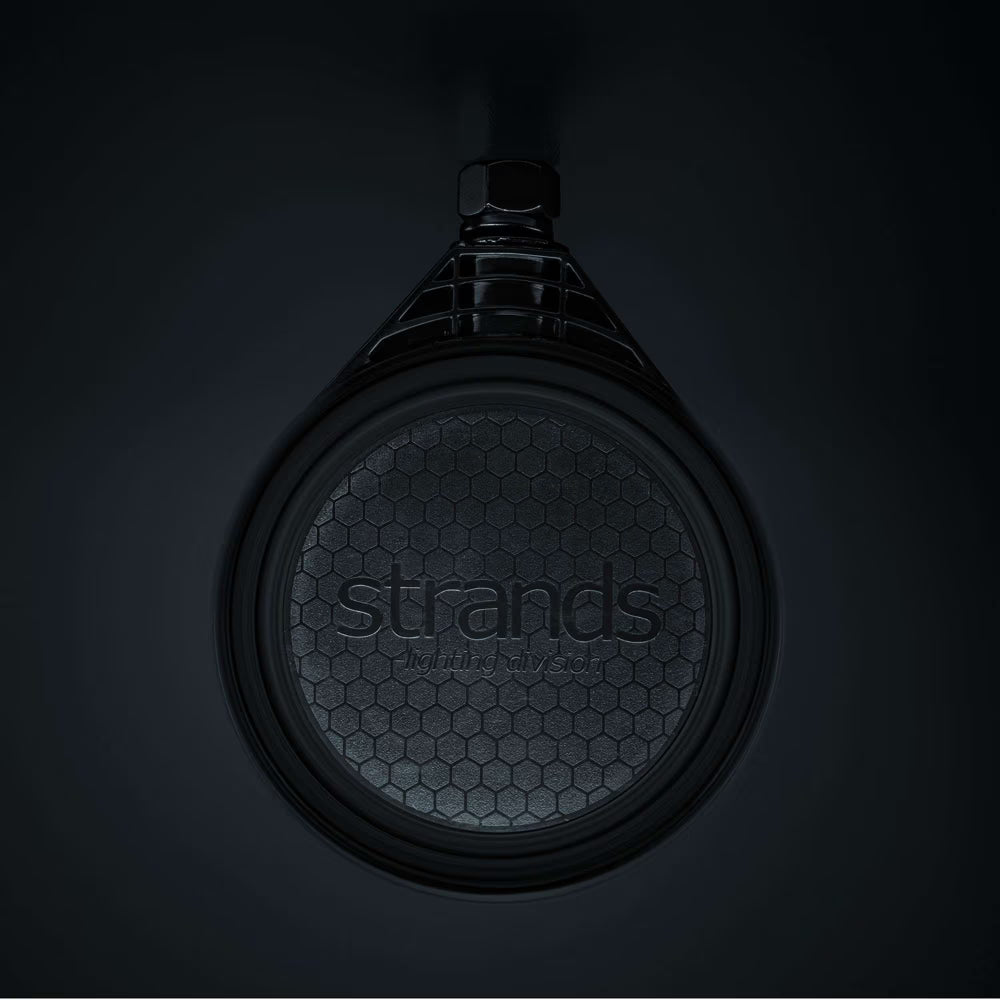

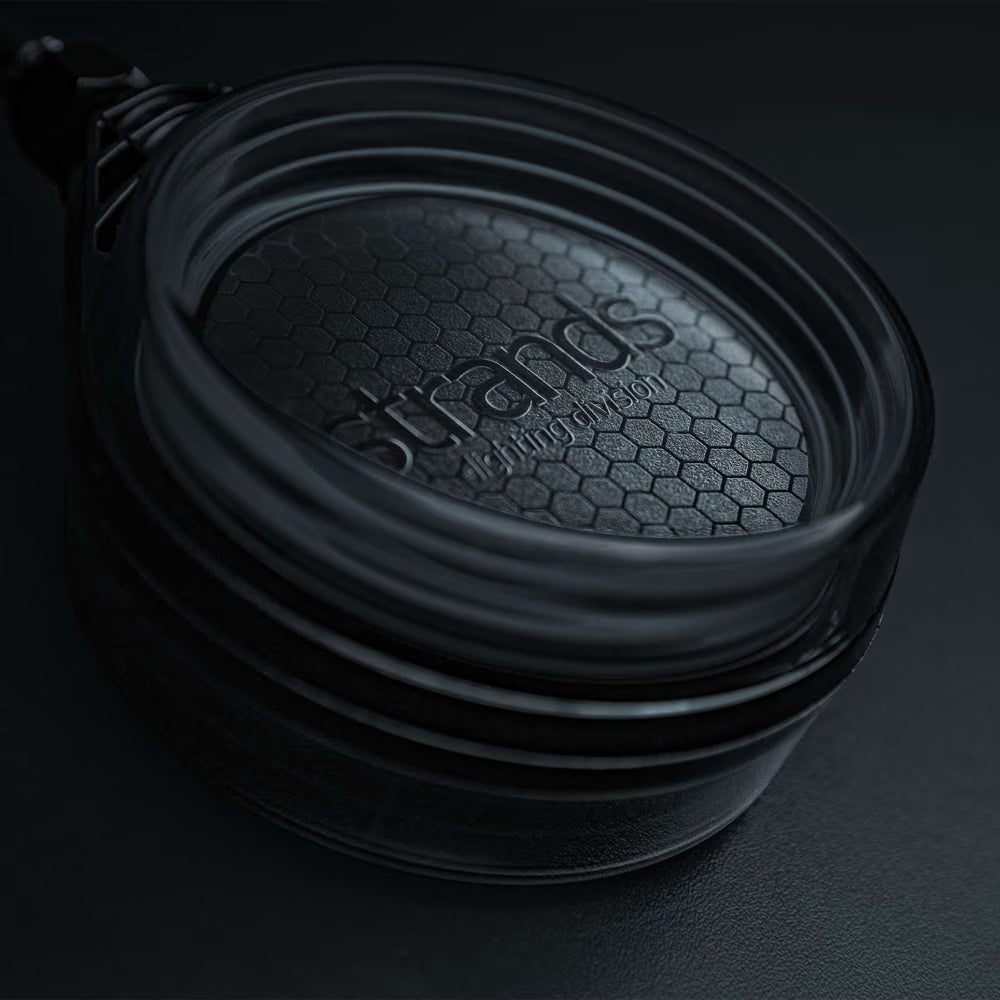

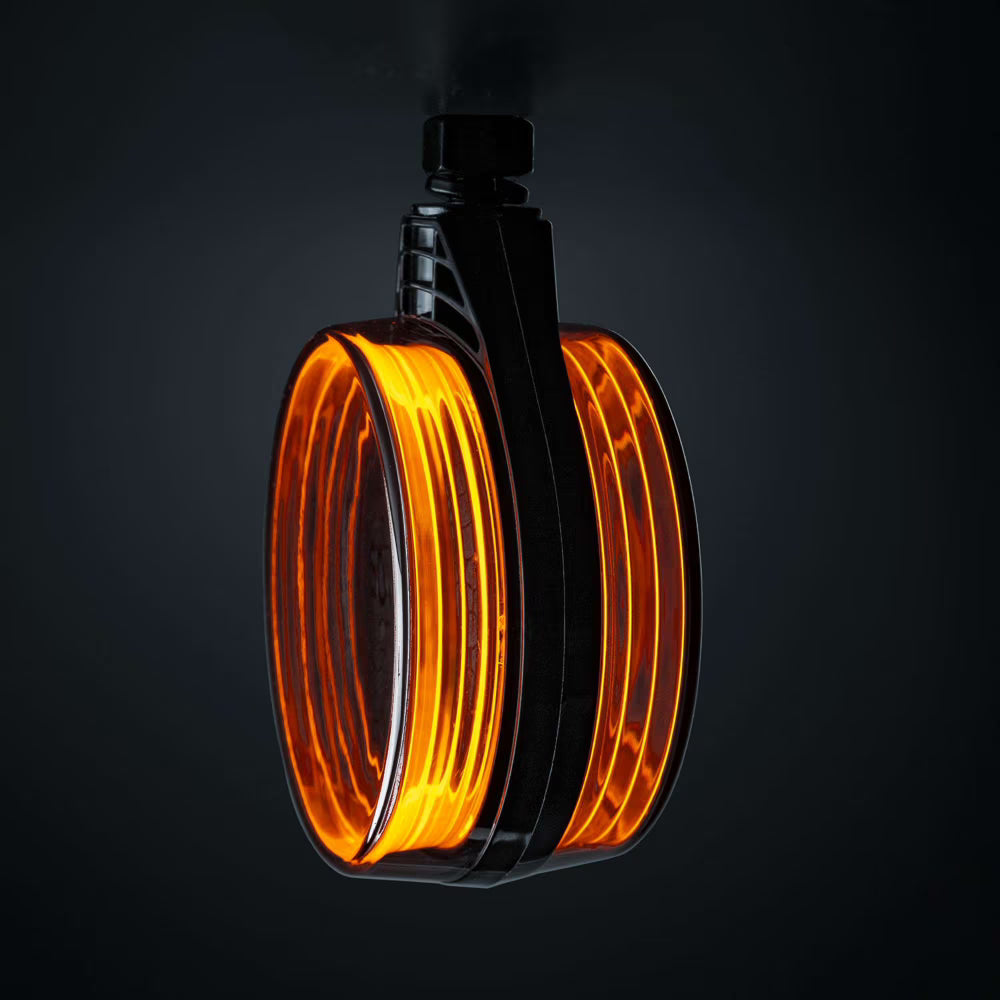

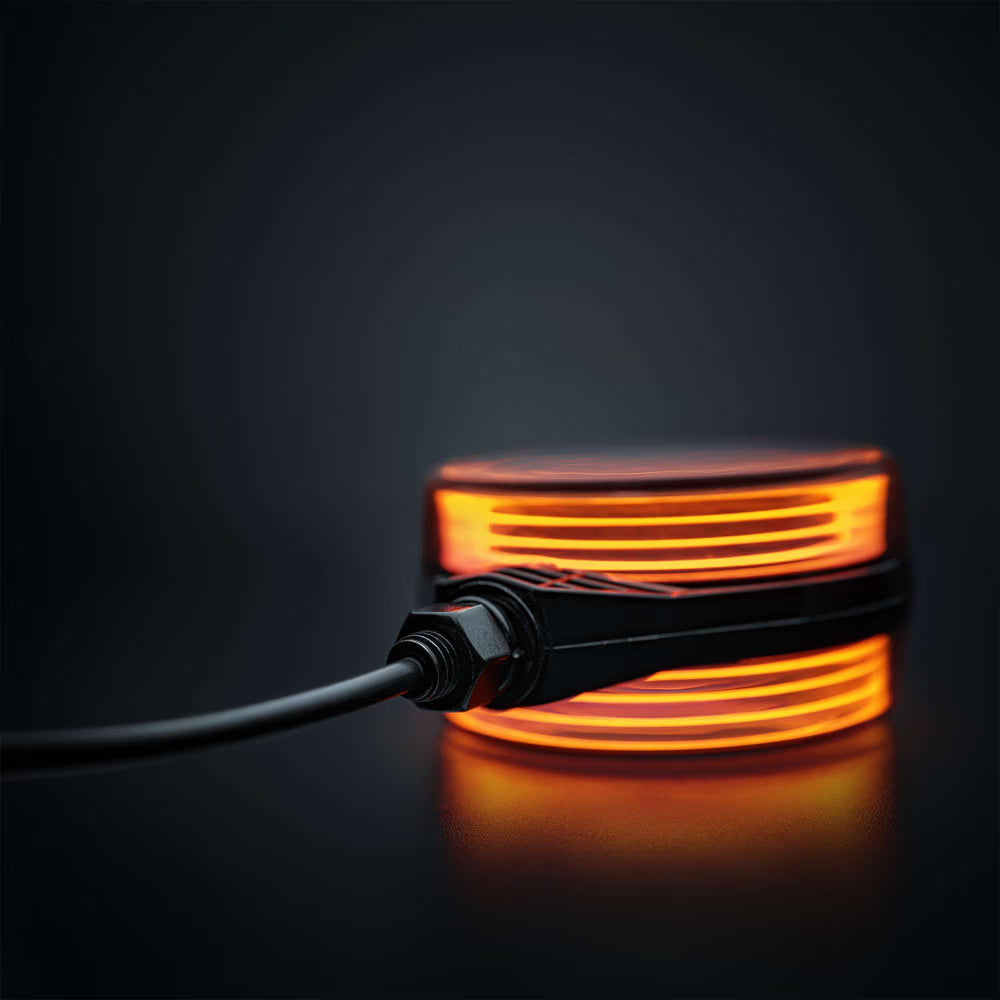

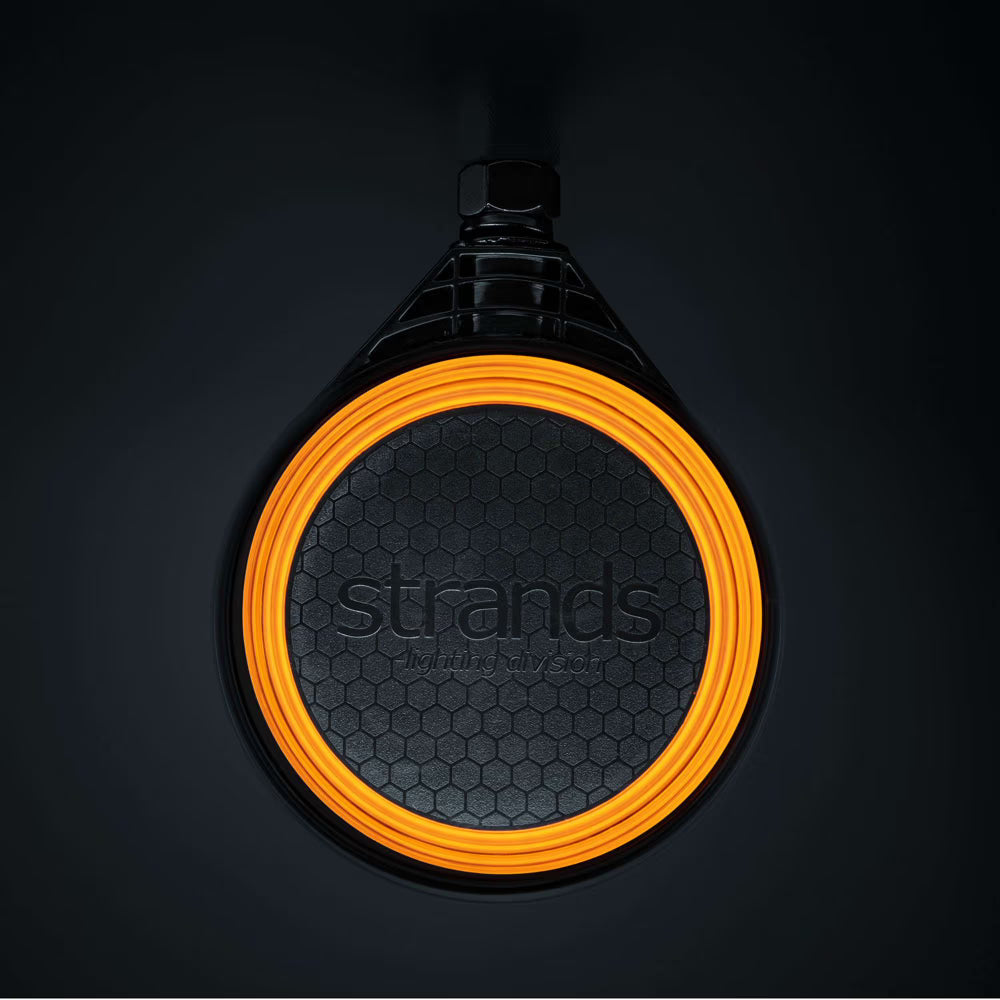

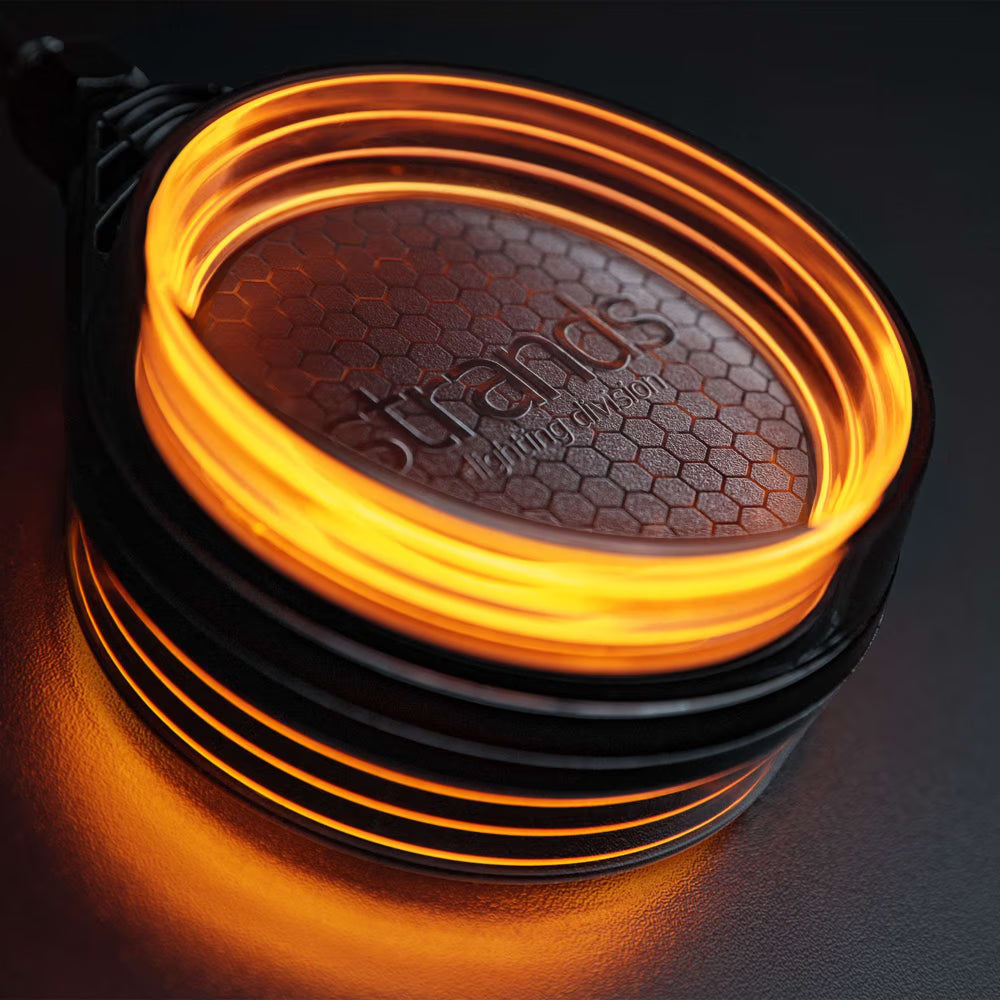

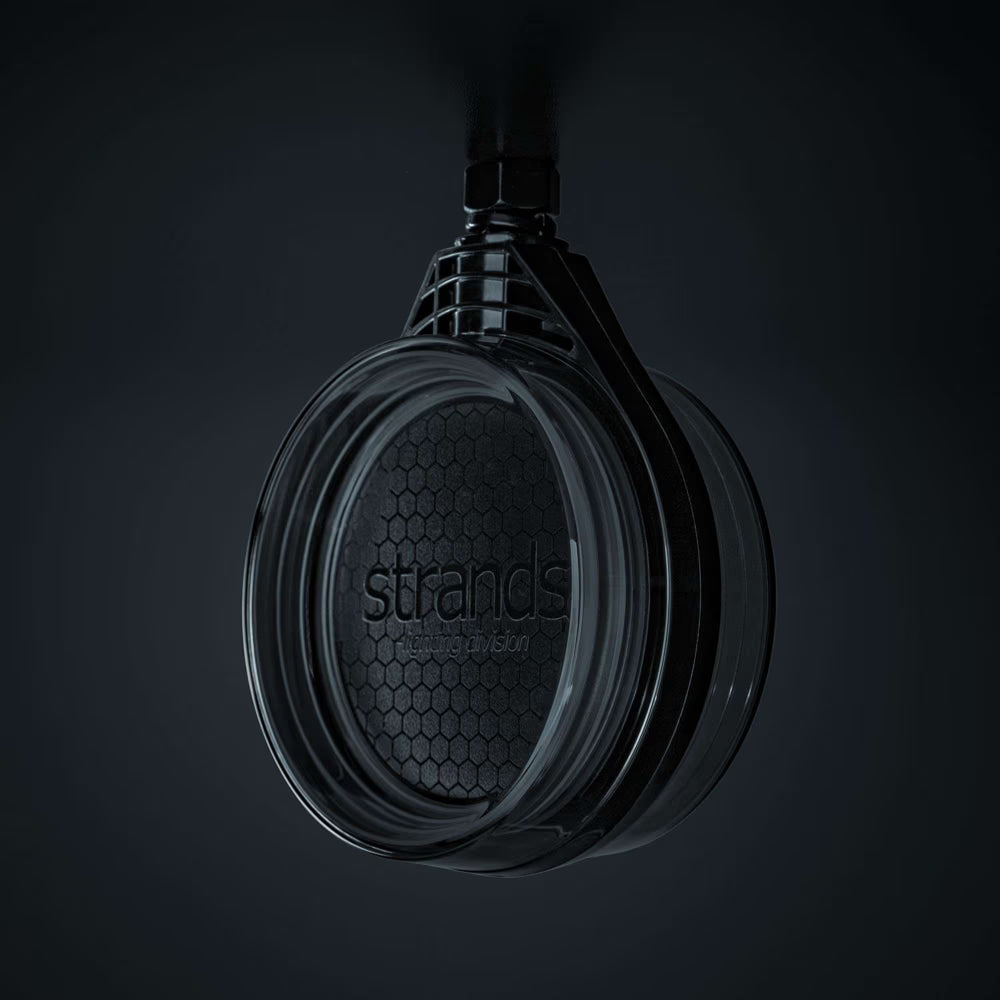

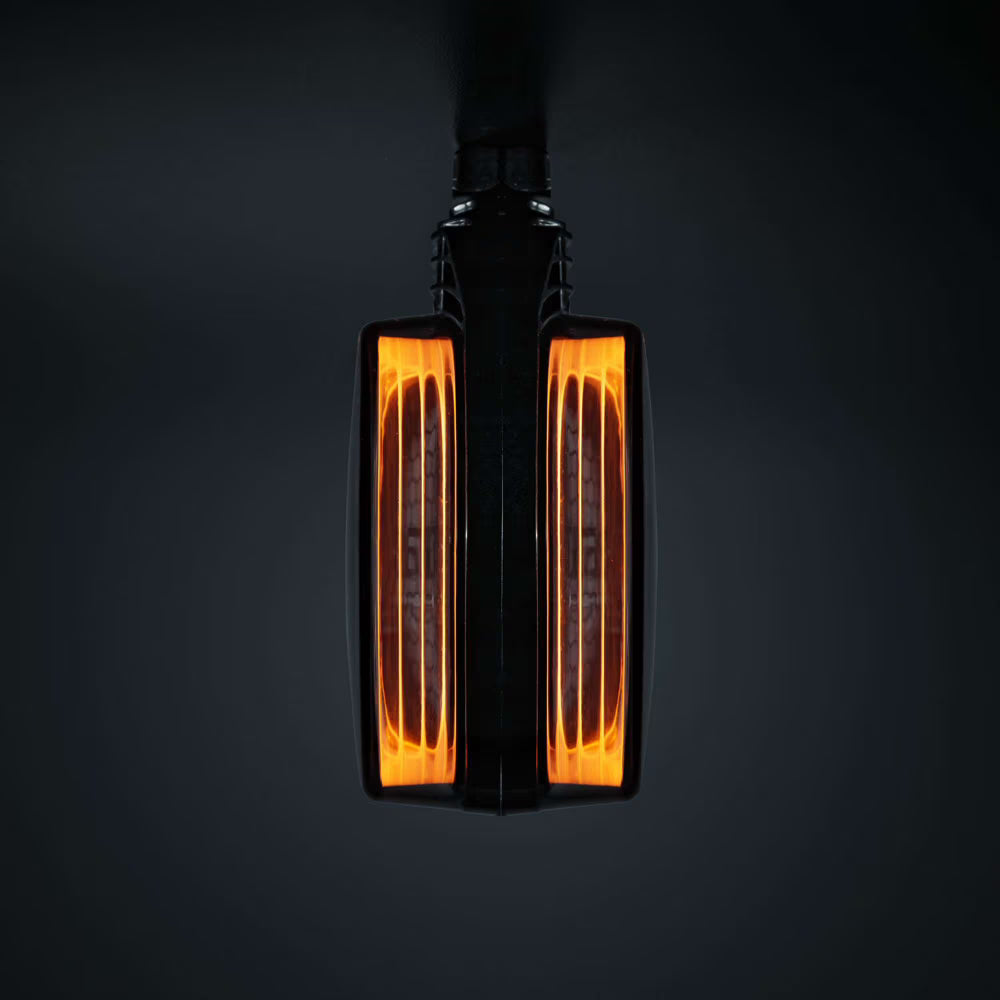

This classic double-sided Spanish light is reimagined with the unmistakable FOR9T character. Signature position light lines, a dark lens, and carefully matched details make it a true eye-catcher with a striking dark design. It features amber front and rear position lights. Built for daily use, it has a polycarbonate lens and is IP67-rated for reliable protection against dust and water. It operates on 10-40 V systems and consumes only 4 W. The light measures 109 mm in diameter, comes with a 500 mm cable, and includes all required mounting hardware: M12 nut, M12 flat washer, and M12 spring washer for a secure and straightforward installation.



Product Specification

  • Unit: PCS
  • Voltage (DC): 10-40V DC
  • Theoretical effect: 8W
  • Consumption: 4W
  • Functions: Side marker
  • Connection: Cable
  • Cable length: 500mm
  • Color housing: Black
  • Color lens: Dark
  • Color LED's: Amber
  • Material bracket: Stainless steel 304
  • Material housing/chassi: Polycarbonate
  • Material lens: Polycarbonate

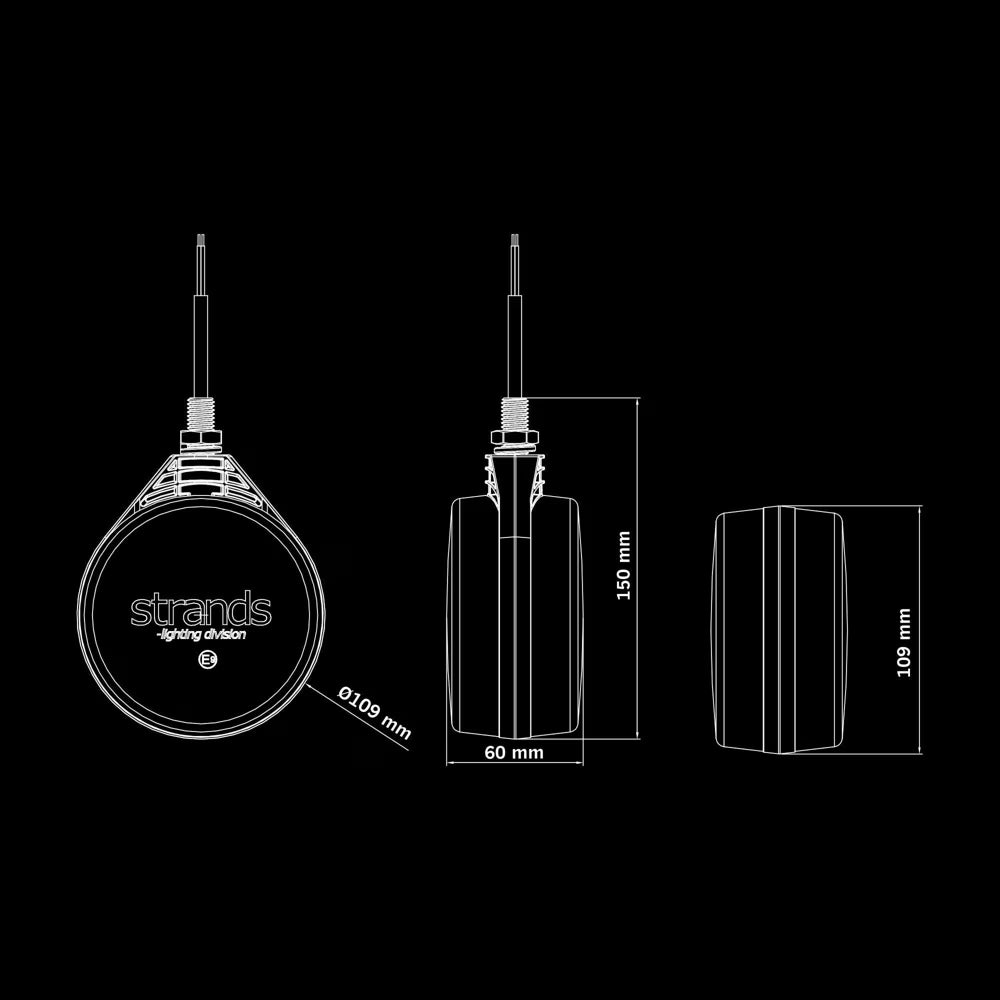

  • Depth: 60mm
  • Height: 150mm
  • Height including bracket: 150mm
  • Weight: 0.26kg
  • Diameter: 109mm
  • IP-class: IP67
  • Operating temperature: -25 - +60°C
  • ECE approval: R10.06

Others Specification

  • Length inner box: 180mm
  • Width inner box: 60mm
  • Height inner box: 120mm
  • Gross weight: 0.31kg
  • Volume: 0.0013m³
  • Warranty: 3 Years
  • Length master carton: 375mm
  • Width master carton: 375mm
  • Height master carton: 315mm
  • Weight master carton: 113kg
  • PCS in master carton: 30pcs

Installation Information

  • Red cable+: Side marker light
  • Black cable-: (Negative)
  • Included in package: M12 nutM12 flat washerM12 spring washer
