Big Energy 9" LED Driving Light – 11,900 Lumens of ECE-Approved Performance

Big Energy 9" LED Driving Light – 11,900 Lumens of ECE-Approved Performance

White / Amber Pos. | Optimized Beam

SKU: 270976

In stock

Regular price €186,66
Regular price Sale price €186,66
Sold out
Tax included. Shipping calculated at checkout.
View full details
Description

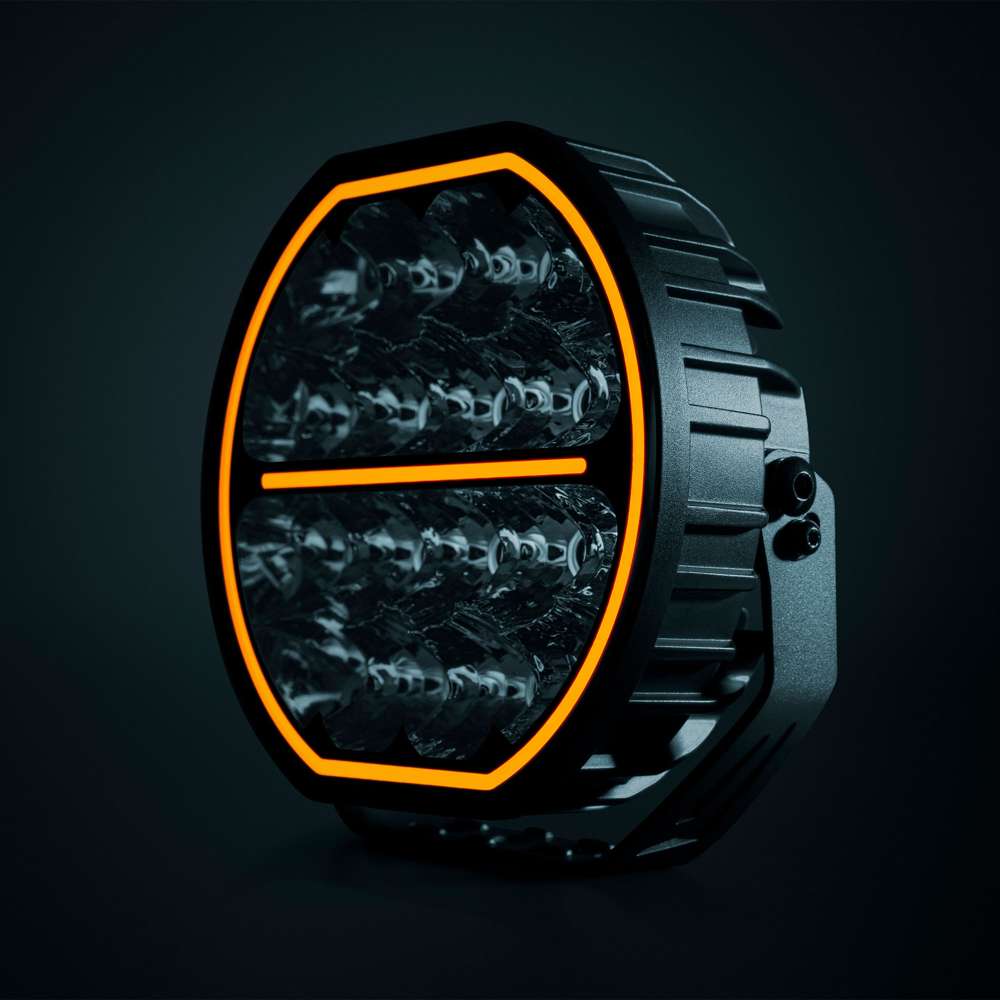

Big Energy 9" LED Driving Light – 11,900 Lumens

The Big Energy 9" LED Driving Light delivers powerful illumination with an impressive 11,900+ lumen output, 6500K cool white light, and a beam distance of up to 440 metres at 1 lux. Designed for improved nighttime visibility, it provides an 80-metre wide beam pattern for excellent road coverage.

With ECE R148 and ECE R149 approval, the Big Energy 9" is designed for compliant auxiliary lighting applications where permitted. Its slim and modern design makes it suitable for passenger cars, SUVs, pickups, and light commercial vehicles.

Key Features

  • 11,900+ lumens LED output

  • 6500K cool white light

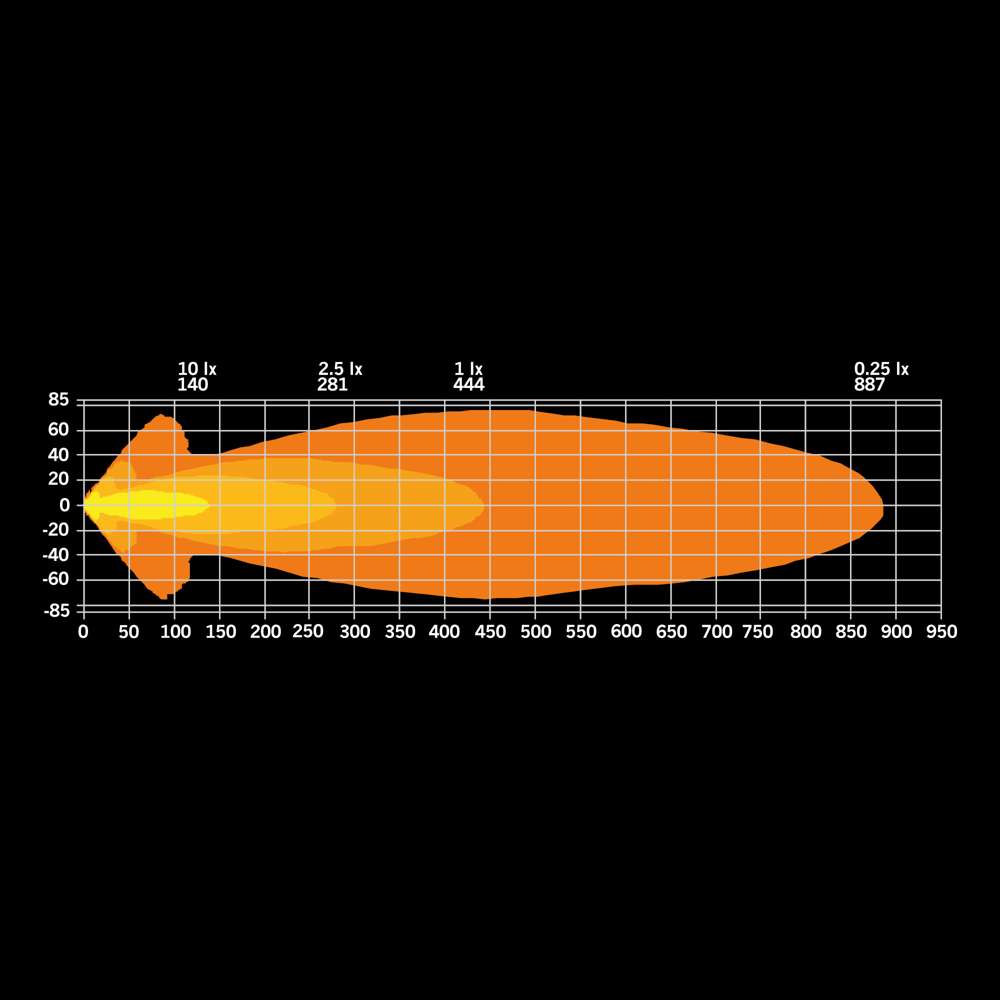

  • 440m beam distance at 1 lux

  • 80m wide beam coverage

  • ECE R148 & R149 approved

  • White and amber position lights

  • Durable aluminium housing

  • Impact-resistant polycarbonate lens

  • IP67 & IP69K weather protection

  • 1000mm cable with DT-4 connector

  • 3-year manufacturer warranty

Built for Reliable Performance

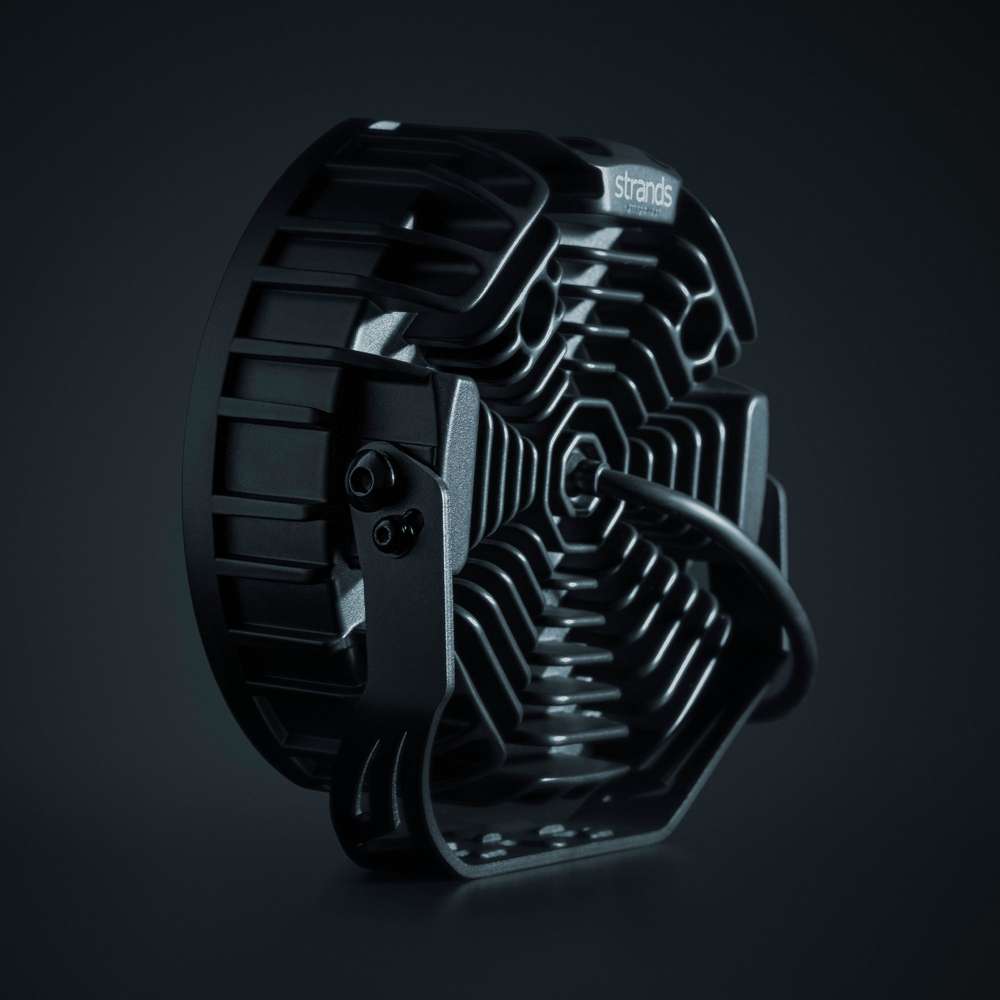

The durable aluminium housing and impact-resistant polycarbonate lens provide excellent protection against demanding driving conditions. With IP67 and IP69K protection, the light is designed to withstand dust, rain, water, mud, and high-pressure cleaning.

The integrated white and amber position lights add a distinctive appearance while the powerful LED beam improves visibility on dark roads.

Ideal for

The Big Energy 9" LED Driving Light is an excellent choice for cars, SUVs, pickup trucks, light commercial vehicles, and off-road applications where powerful and reliable auxiliary lighting is required.

Upgrade your vehicle with the Big Energy 9" LED Driving Light for high-output illumination, wide road coverage, durable construction, and approved auxiliary lighting performance.

Product Specification

  • UnitPCS
  • Voltage (DC)10-32V DC
  • Theoretical effect126W
  • Consumption105W
  • FunctionsAmber Pos.White pos.Driving beam
  • Consumption specific functionDriving 105WWhite pos. 8WAmber pos. 8W
  • Theoretical lumen13500lm
  • Actual lumen11950lm
  • 1 lux @444m
  • Color temperature6500K
  • Beam patternOptimized beam
  • Beam angle25.6°
  • ConnectionDT-4PIN
  • Cable length1000mm
  • Color housingBlack
  • Color lensClear
  • Color LED'sWhite | Amber
  • Material housing/chassiAluminium
  • Material lensPolycarbonate

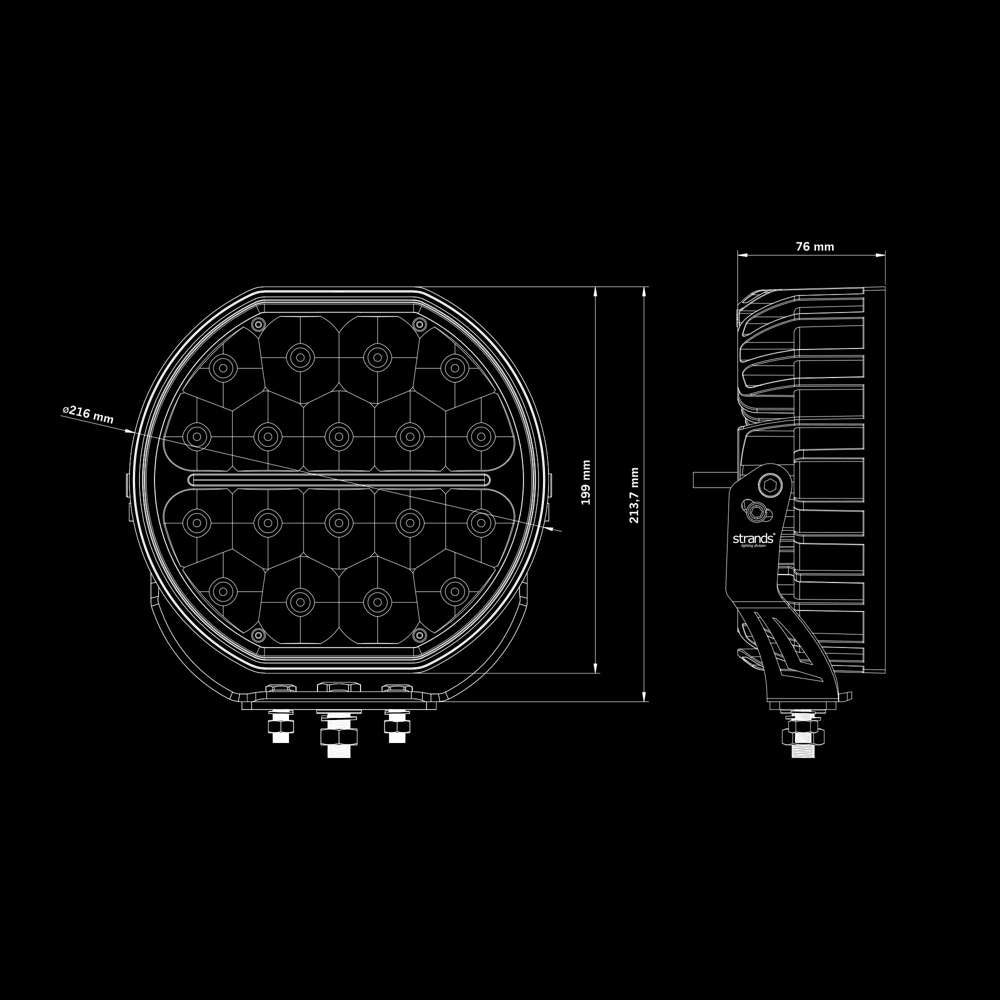

  • Length216mm
  • Depth76mm
  • Height199mm
  • Height including bracket213.7mm
  • Weight2.39kg
  • IP-classIP67/69K
  • Operating temperature-35 - +60°C
  • E-approvedYes
  • ECE approvalR10.06R148R149
  • Reference number50

Others Specification

  • Length inner box290mm
  • Width inner box140mm
  • Height inner box275mm
  • Gross weight2.66kg
  • Volume0.01m³
  • Warranty3 Years
  • Length master carton568mm
  • Width master carton454mm
  • Height master carton306mm
  • Weight master carton17kg
  • PCS in master carton6pcs

Installation Information

  • Red cable+ (High-beam)
  • Black cable- (Negative)
  • White cable+ White Position light(Positive)
  • Yellow cable+ Amber Position light(Positive)
  • Included in packageScrewswashersBracketbolts
